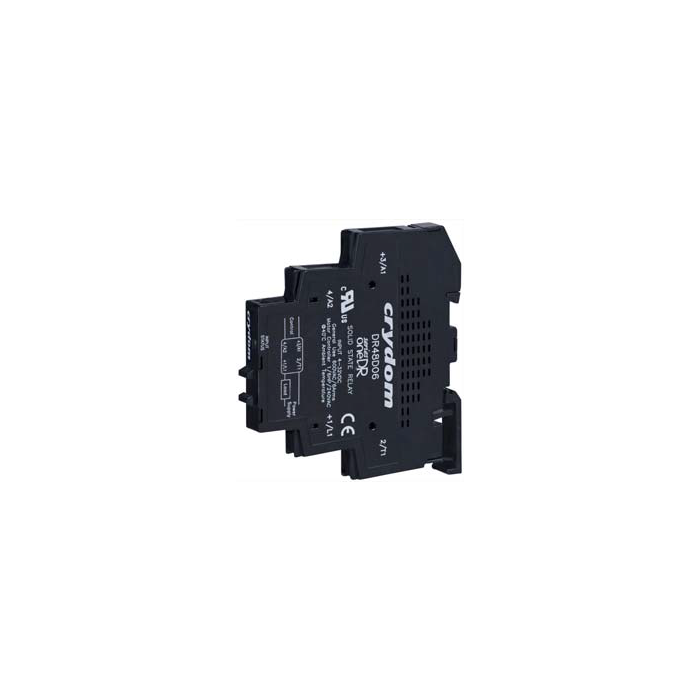

SOLID-STATE RELAIS UCONTR 4..32VDC / ULOAD 1..60VDC 6A DINRAIL MONTAGE

• Ratings of 6 & 12 Amps
• Load voltage ratings of 1-60VDC
• Fits standard 35mm DIN-RAIL
• LED input status indicator
• AC or DC control
• Zero-crossing (resistive loads) or random turn-on (inductive loads) output
• UL and cUL Recognized, CE & RoHS Compliant
• UL 508 Endurance Rating for Enhanced Reliability

OUTPUT SPECIFICATIONS DC Output (1)
Description DR06D06
Operating Voltage [VDC] 1-60
Maximum Load Current [Adc] (2) 6
Minimum Load Current [mAdc] 2.5
Maximum Off-State Leakage Current @ Rated Voltage [mA] 0.1
Maximum On-State Voltage Drop @ Rated Current [Vpk] 0.6
Maximum Surge Current (10ms) [Apk] 60
On-State resistance at rated current [Ohms] 0.1
Min/Max stranded wire 22/14 AWG
Min/Max solid wire 22/14 AWG
Weight (typical) 50g

Description DRxxDxx DRxxBxx DRxxAxx DRxxExx
Control Voltage Range (4) 4.0-32 VDC
Minimum Turn-On Voltage 4.0 VDC
Minimum Turn-Off Voltage 1.0 VDC
Minimum Input Current [mA] (5) 9
Maximum Input Current [mA] (5) 11
Maximum Turn-On Time (6) (7) 1/2 Cycle
Maximum Turn-Off Time (8) 1/2 Cycle
Min/Max stranded/solid wire 22/16 AWG

Description Parameters
Dielectric Strength, Input/Output/Base (50/60Hz) 4000Vrms
Minimum Insulation Resistance (@ 500 V DC) 109 Ohms
Maximum Capacitance, Input/Output 10 pF
Ambient Operating Temperature Range -30ºC to 80ºC
Ambient Storage Temperature Range -30ºC to 100ºC
Recommended Terminal Screw Torque Range: 4.4-7.0 in lb (0.5-0.8 Nm)
