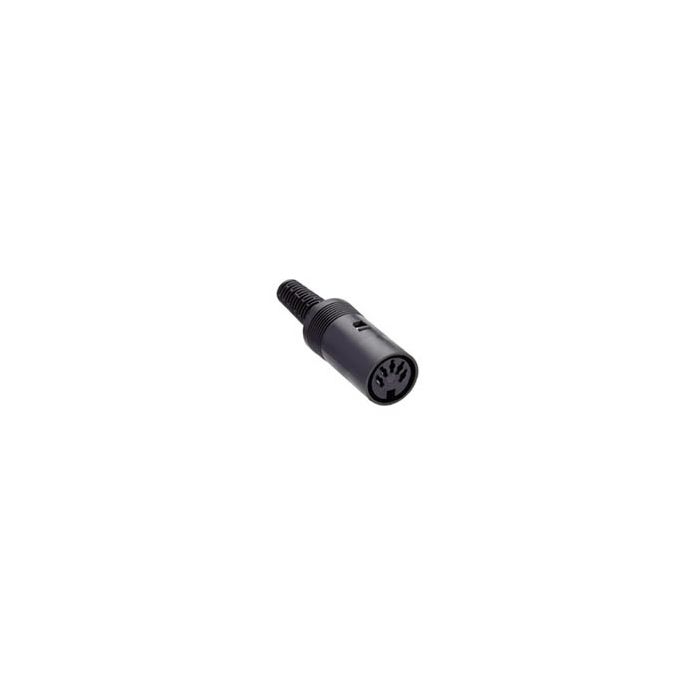

DIN 4P FEMALE PLASTIC

DIN socket, straight version, shielded, with one-piece inner
shell, bend protection and solder terminals
Grey version on request
1. Temperature range -25 ¡ÆC/+70 ¡ÆC
2. Materials
Body PA 6.6 GF, HB according to UL 94
Contact spring CuZn, undernickeled and tinned
CuSn, silvered
Sleeve steel, undercoppered and nickeled
Housing PE, HB according to UL 94
3. Mechanical data
Insertion force/contact1 ¡Â 7 N
Withdrawal force/contact1 ¡Ã 1 N
Cable diameter 6.0 mm
Mating with DIN plugs S, XS
Connectable conductors solder terminal
max. section 0.34 mm2
4. Electrical data
Contact resistance ¡Â 10 m§Ù (earth contact ¡Â 30 m§Ù)
Rated current 4 A
Rated voltage 34 V AC
Test voltage 1 kV AC/60 s
Insulation resistance > 10 G§Ù (XK 52, 72, 82 > 1 k§Ù)
1 measured with a polished steel pin, nominal thickness 1.5 mm)
