DIN 6P CHASSIS PRINT
€ 1,78
€ 1,47
Artikelnummer
DNC06P
- ArtikelnummerDNC06P
- MerkLUMBERG
- Aantal 10+ € 1,60 € 1,32

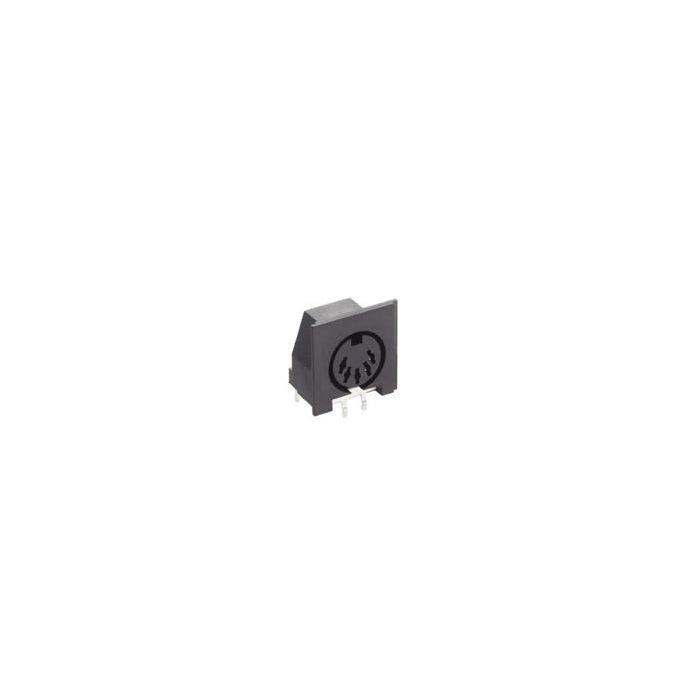

DIN chassis socket, right angle version, for printed circuit
boards
1. Temperature range -30 ¡ãC/+80 ¡ãC
2. Materials
Body PA 6
Contact spring CuZn, pre-nickeled and tinned
Housing PA 6
3. Mechanical data
Mating with DIN plugs S, XS
4. Electrical data
Rated current 4 A
Rated voltage 34 V DC/24 V AC
Contact resistance ¡Ü 10 m¦¸
