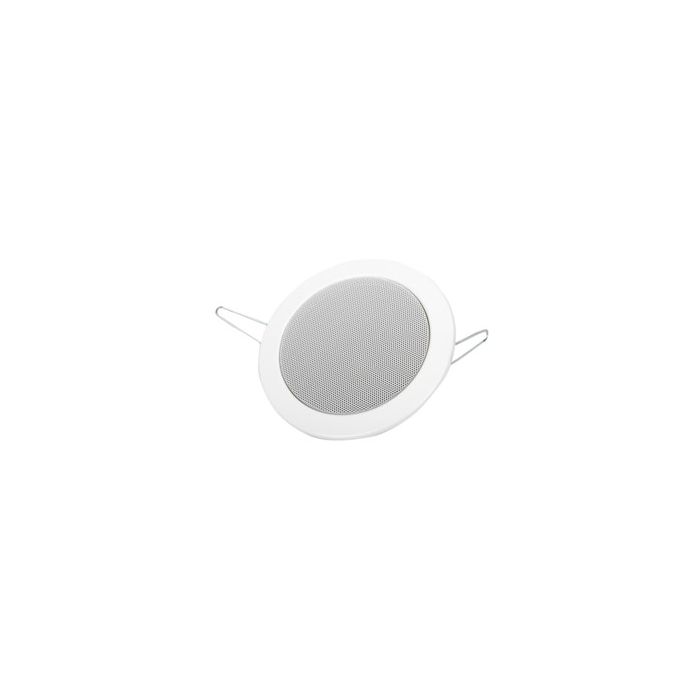

PLAFONDSPEAKER 6/3/1.5W 100V 100MMM WIT
€ 47,50
€ 39,26
Artikelnummer
DL10V
- ArtikelnummerDL10V
- MerkVISATON
- Aantal 2+ € 45,12 € 37,29
Technical Data:
Transformer matching 6; 3; 1,5 W
Sound pressure level 90 dB (1 W/1 m)
@ 2100Hz
Frequency response 7520000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Max. sound pressure level 94 dB (6 W/1 m)
Opening angle (-6 dB) 82°/4000 Hz
Excursion limit +/−2,5 mm
Resonance frequency fs 140 Hz
Magnetic induction 0,7 T
Magnetic flux 130 µWb
Voice coil diameter 20 mm
Cutout diameter 110 mm
Net weight 0,545 kg
Length of cable 0,2 m
Protective system IP 54 *)
Temperature range −40 ... 110 °C
Colour RAL 9010
Transformer matching 6; 3; 1,5 W
Sound pressure level 90 dB (1 W/1 m)
@ 2100Hz
Frequency response 7520000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Max. sound pressure level 94 dB (6 W/1 m)
Opening angle (-6 dB) 82°/4000 Hz
Excursion limit +/−2,5 mm
Resonance frequency fs 140 Hz
Magnetic induction 0,7 T
Magnetic flux 130 µWb
Voice coil diameter 20 mm
Cutout diameter 110 mm
Net weight 0,545 kg
Length of cable 0,2 m
Protective system IP 54 *)
Temperature range −40 ... 110 °C
Colour RAL 9010
