HOORNSPEAKER 100V 15W 214X231MM
€ 125,01
€ 103,31
Artikelnummer
DK8
- ArtikelnummerDK8
- MerkVISATON
- Aantal 2+ € 118,75 € 98,14

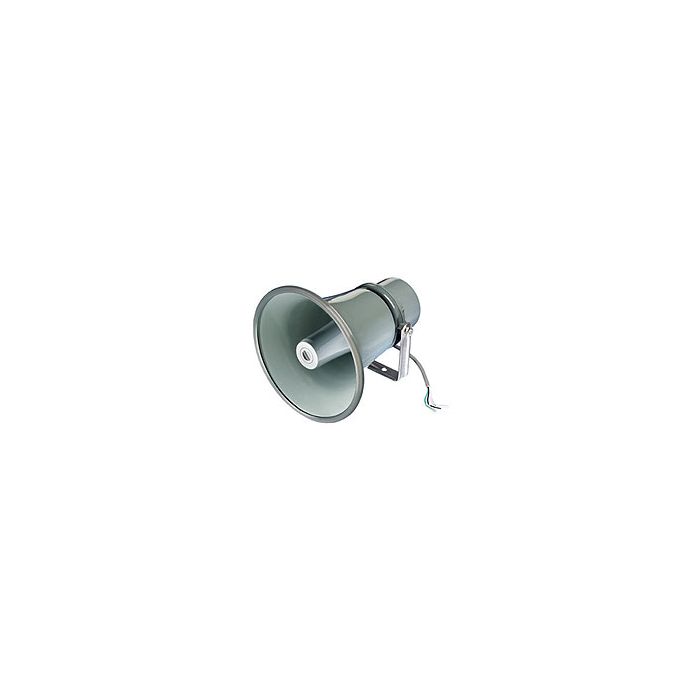

Re-entrant horn speaker with 100 V transformer. Five-stage level adjustment for 100 V model via knob, in addition 20 Ohm possible. High sound pressure and wide range of frequency response guarantee excellent voice quality. Pivoting metal frame for mounting walls, ceilings, columns etc.
Typical applications:
- PA systems in factory halls, railway stations etc.
- outdoor PA
Attributes:
- functionally at low temperature according to EN 60068-2-1 (-25 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
- 100 V transformer
Transformer matching 15; 10; 5; 3; 1 W; 20 Ohm
Sound pressure level 107 dB (1 W/1 m)
@ 1144 Hz
Frequency response 4005000 Hz
Mean sound pressure level 105 dB (1 W/1 m)
Max. sound pressure level 117 dB (15 W/1 m)
Opening angle (-6 dB) 42°/4000 Hz
Net weight 1,4 kg
Length of cable 0,6 m
Protective system IP 66
Temperature range −25 ... 70 °C
Colour RAL 7012
Typical applications:
- PA systems in factory halls, railway stations etc.
- outdoor PA
Attributes:
- functionally at low temperature according to EN 60068-2-1 (-25 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
- 100 V transformer
Transformer matching 15; 10; 5; 3; 1 W; 20 Ohm
Sound pressure level 107 dB (1 W/1 m)
@ 1144 Hz
Frequency response 4005000 Hz
Mean sound pressure level 105 dB (1 W/1 m)
Max. sound pressure level 117 dB (15 W/1 m)
Opening angle (-6 dB) 42°/4000 Hz
Net weight 1,4 kg
Length of cable 0,6 m
Protective system IP 66
Temperature range −25 ... 70 °C
Colour RAL 7012
