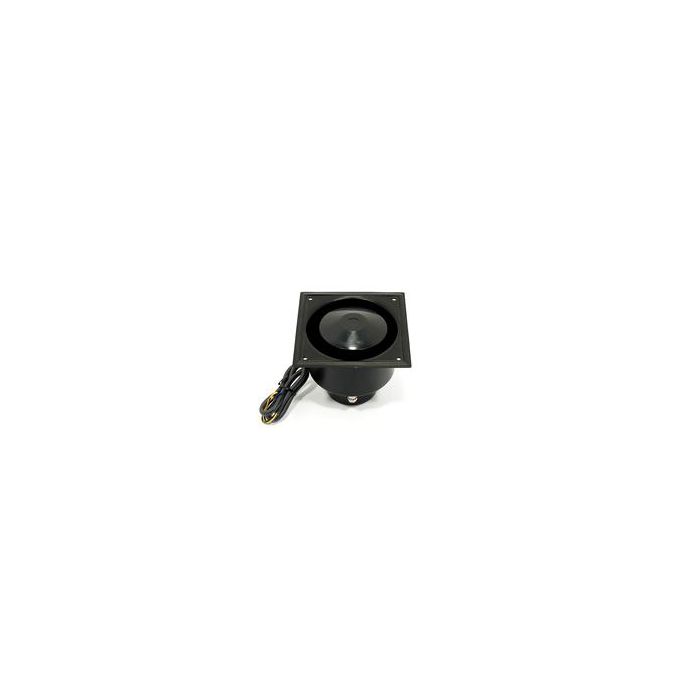

HOORNSPEAKER 100V 0.3/0.5/1/1.5/3/6W 570-4400HX 104DB 121X121MM

Built-in horn speaker with 100 V transformer. Waterproof design. Housing made of black lacquered aluminium, horns made of polypropylene (PP). High IP protection class (IP 67), high sound pressure and good voice reproduction. Ideal for inconspicuous installation due to the very compact dimensions. The potential equalisation connection is by means of an M6 grubscrew on the rear of the housing. The connection is via a four-core, halogen-free flexible cable (0.5 m).

Typical applications:
- PA systems in factory halls, railway stations etc.
- Outdoor PA at railway-vehicles
- Use in alarm/alert systems

Characteristics:
Weather-proof aluminum cabinet
Plastic-insert-cabinet
UV-resistant

Transformer matching 6/3/1,5/0,5/0,3 W
Sound pressure level 104 dB (1 W/1 m) @ 2900 Hz
Frequency response 570–4400 Hz
Mean sound pressure level 100 dB (1 W/1 m)
Max. sound pressure level 107 dB (6 W/1 m)
Opening angle (-6 dB) 69°/4000 Hz
Voice coil diameter 40 mm
Net weight 0,78 kg
Length of cable 0,5 m
Protective system IP 67
Temperature range −25 ... 70 °C
