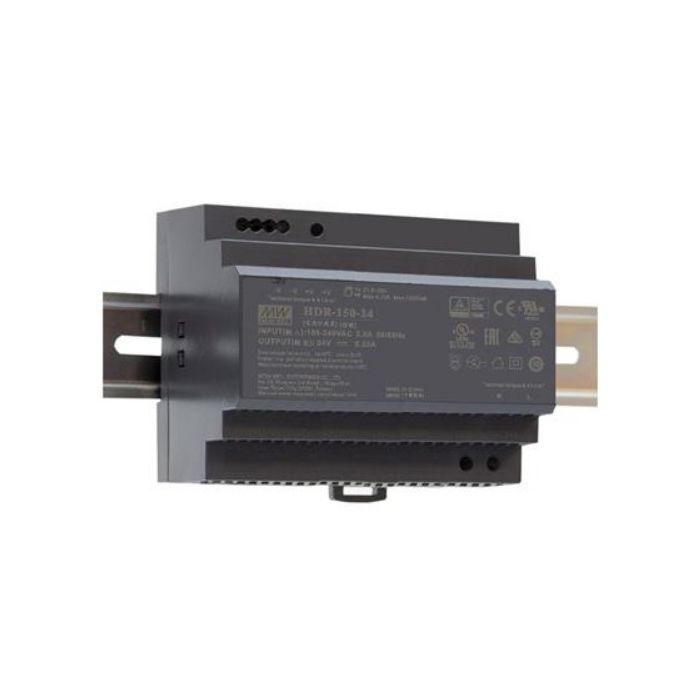

DIN-RAIL VOEDING 105MM 150W 24V/6,25A
€ 47,95
€ 39,63
Artikelnummer
HDR15024
- ArtikelnummerHDR15024
- MerkMEANWELL
- Aantal 3+ € 45,54 € 37,64
Features |
• Direct assembly on DIN Rail • Enclosed case, Touch-guard screw terminals • Universal input • Overload protection, current limiting, auto recovery • Protections: short circuit, over load, over voltage • Low no load power consumption • Power-on LED display • Insulation Class II |
Technical Specifications |
Input Voltage: | 85...264V AC (47...63Hz) |
120...370V DC | |
Input Inrush Current, Max.: | 70A |
Over Load Protection: | 105...135% |
Withstand Voltage, I/P-O/P: | 4000V AC |
Operating Temperature: | -30...+70°C |
Weight: | 310g |
I/P = Input, O/P = Output |
|
Part Nr. | UA | IA | PA | DUA | URN | h |
[V] | [A] | [W] | [%] | [mVp-p] | [%] | |
HDR10012 | 12 | 11,3 | 135,6 | 2 | 120 | 89 |
HDR10015 | 15 | 9,5 | 142,5 | 1 | 120 | 89,5 |
HDR10024 | 24 | 6,25 | 150 | 1 | 150 | 90,5 |
HDR1048 | 48 | 3,2 | 153,6 | 1 | 240 | 90,5 |
UA = Output Voltage, IA = Output Current, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency |
