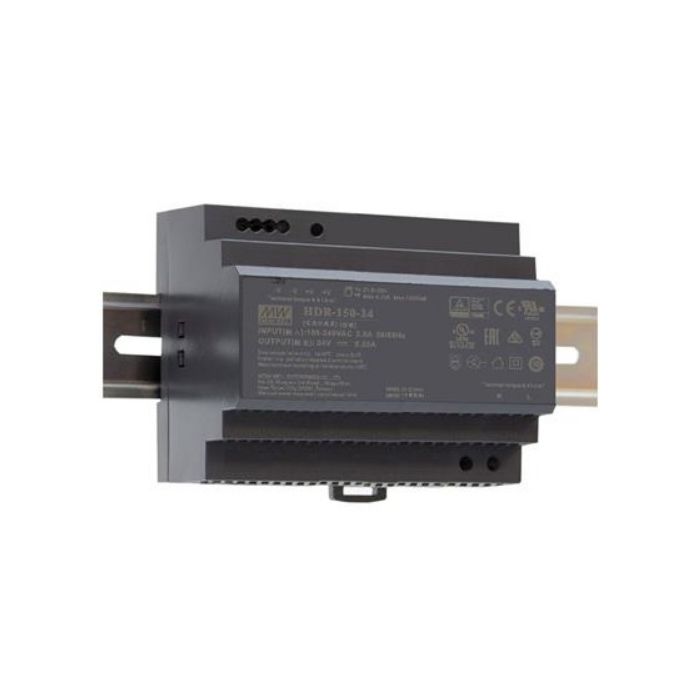

DIN-RAIL VOEDING 105MM 142,5W 15V/9,1A
€ 47,95
€ 39,63
Artikelnummer
HDR15015
- ArtikelnummerHDR15015
- MerkMEANWELL
- Aantal 3+ € 45,54 € 37,64
| Features |
| • Direct assembly on DIN Rail • Enclosed case, Touch-guard screw terminals • Universal input • Overload protection, current limiting, auto recovery • Protections: short circuit, over load, over voltage • Low no load power consumption • Power-on LED display • Insulation Class II |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 70A |
| Over Load Protection: | 105...135% |
| Withstand Voltage, I/P-O/P: | 4000V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 310g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| HDR10012 | 12 | 11,3 | 135,6 | 2 | 120 | 89 |
| HDR10015 | 15 | 9,5 | 142,5 | 1 | 120 | 89,5 |
| HDR10024 | 24 | 6,25 | 150 | 1 | 150 | 90,5 |
| HDR1048 | 48 | 3,2 | 153,6 | 1 | 240 | 90,5 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
