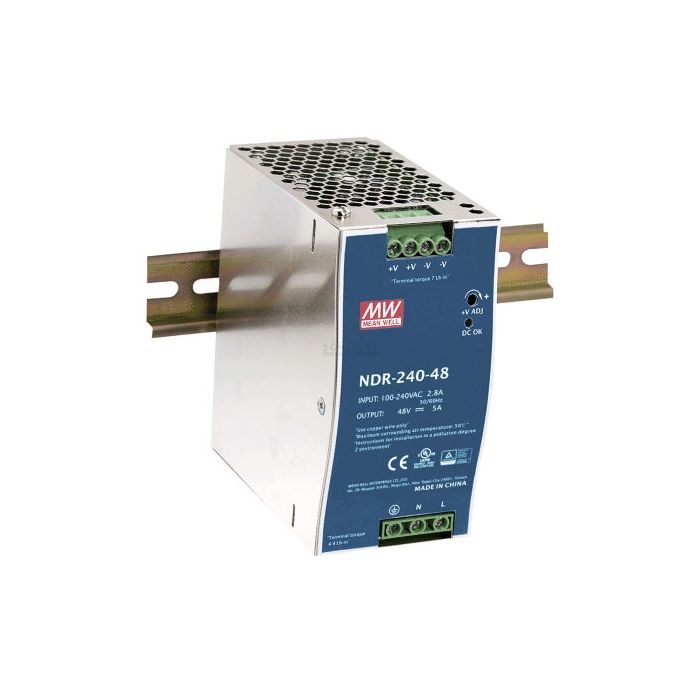

DIN-RAIL 125.5MM VOEDING 240W 48V/5A

MEANWELL
Artikelnummer: NDR24048
Uw prijs:
€ 57,02 Excl. BTW:
€ 68,99 Incl. BTW:
- +

Extra informatie

print

Technical Specifications


Input Voltage: 90...264V AC (47...63Hz)
127...370V DC
Input Inrush Current, Typ.: 35A
Leakage Current, Max.: 1mA
Output Voltage Adjustment: +15%
Over Load Protection: 105...130%
Withstand Voltage
I/P-O/P: 3000V AC
I/P-FG: 2000V AC
O/P-FG: 500V AC
Operating Temperature: -20...+70°C
Weight: 1000g
I/P = Input, O/P = Output, FG = Frame Ground


Part Nr. UA IA PA DUA URN h
  [V] [A] [W] [%] [mVp-p] [%]
NDR-240-24 24 0...10 240 1 150 88,5
NDR-240-48 48 0...5 240 1 150 90
UA = Output Voltage, IA = Output Current Range, PA
DIN-RAIL VOEDING 240W 48V/5A
DIN-RAIL VOEDING 240W 48V/5A
MEANWELL
