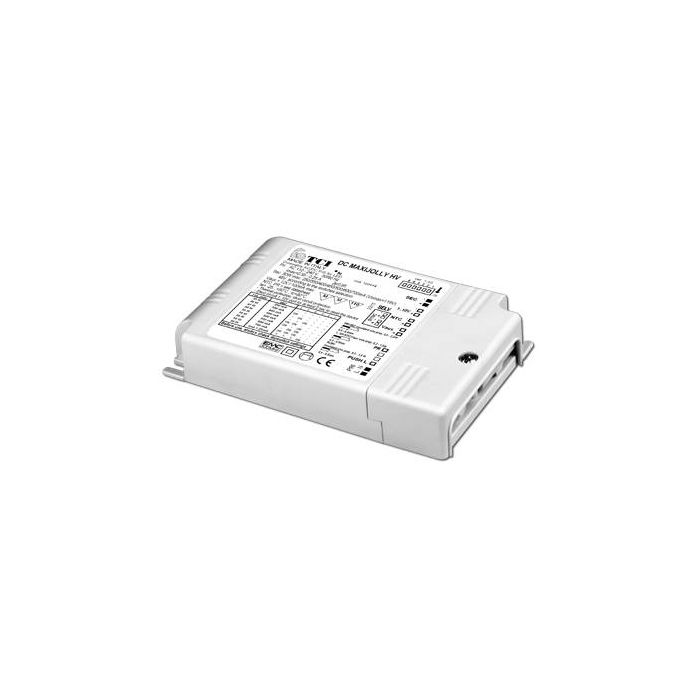

DC MAXI JOLLY HV LED DRIVER 70-112VDC 250-700MA 50W 124,5X79X22MM DIMBAAR 1-10V & PUSH

Features
• Multipower driver supplied with dip-switch for the selection
of the output current.
• IP20 independent driver, for indoor use (DC MAXI JOLLY HV).
• Class II protection against electric shock for direct or indirect
contact (DC MAXI JOLLY HV).
• Driver for built-in use (DC MAXI JOLLY HV BI).
• It can be used for lighting equipment in protection class I and II
(DC MAXI JOLLY HV BI).
• Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Auxiliary output 12 V max. 100 mA.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side
(wire cross-section up to 2,5 mm2 / AWG13).
• Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm (DC MAXI JOLLY HV).
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
