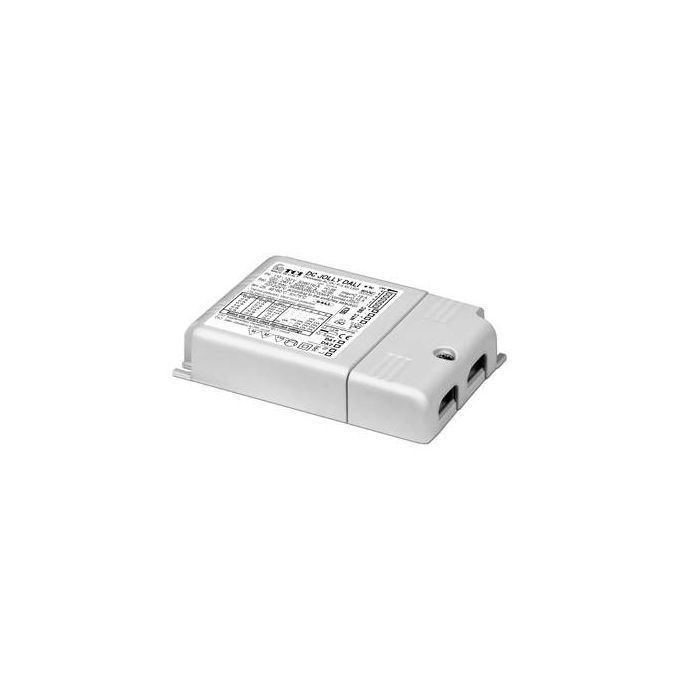

DC JOLLY DALI LED DRIVER 10-47VDC 250-900MA 32W 103X67X21MMDALI

Features
• Multipower driver supplied with dip-switch for the selection of
the output current.
• IP20 independent driver, for indoor use (DC JOLLY DALI).
• Class II protection against electric shock for direct or indirect
contact (DC JOLLY DALI).
• Driver for built-in use (DC JOLLY BI DALI).
• It can be used for lighting equipment in protection class I and II
(DC JOLLY BI DALI).
• Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side (wire
cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm (DC JOLLY DALI).
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
