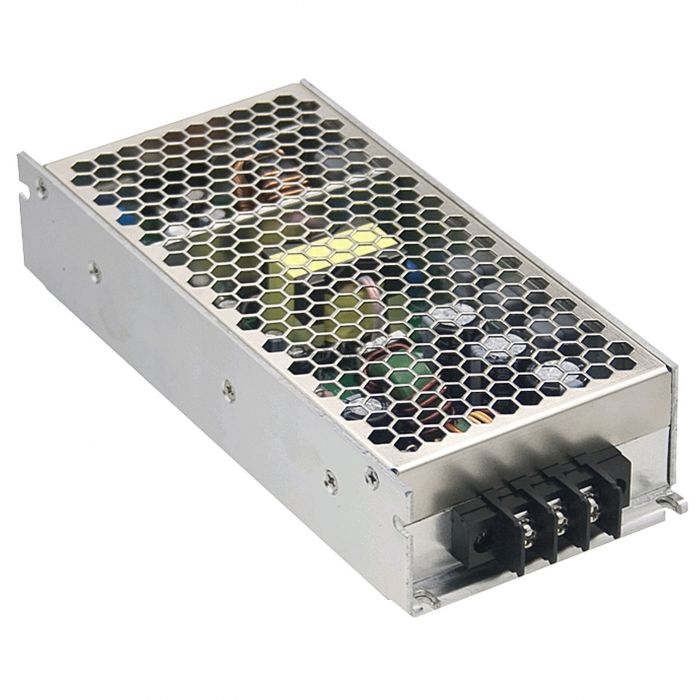

DC-DC CONVERTER 67-143V:12V 16.7A IN BEHUIZING
€ 135,00
€ 111,57
Artikelnummer
RSD200D12
- ArtikelnummerRSD200D12
- MerkMEANWELL
- Aantal 3+ € 121,50 € 100,41
Features
| • Enclosed case, screw terminals • Overload protection • Wide input voltage range 2:1 • DC decoupling of input and output • Input/output insulation 4000V DC • Regulated output voltage • LED indicator for power on • Short-circuit proof |
 |
| Technical Specifications |
|
|
| Input Voltage: | See Table |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 4000V DC |
| I/P-FG: | 2500V DC |
| O/P-FG: | 2500V DC |
| Operating Temperature: | -40...+55°C |
| Weight: | 940g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UE | UA | IA | DUA | URN | h |
| [V] | [V] | [A] | [%] | [mVp-p] | [%] | |
| RSD-200B-12 | 16,8...31,2 | 12 | 0...16,7 | ±2 | 120 | 89 |
| RSD-200B-24 | 16,8...31,2 | 24 | 0...8,4 | ±2 | 150 | 89 |
| RSD-200B-48 | 16,8...31,2 | 48 | 0...4,2 | ±2 | 180 | 89 |
| RSD-200C-12 | 33,6...62,4 | 12 | 0...16,7 | ±2 | 120 | 91 |
| RSD-200C-24 | 33,6...62,4 | 24 | 0...8,4 | ±2 | 150 | 91 |
| RSD-200C-48 | 33,6...62,4 | 48 | 0...4,2 | ±2 | 180 | 91 |
| RSD-200D-12 | 67,2...143,0 | 12 | 0...16,7 | ±2 | 120 | 91 |
| RSD-200D-24 | 67,2...143,0 | 24 | 0...8,4 | ±2 | 150 | 91 |
| RSD-200D-48 | 67,2...143,0 | 48 | 0...4,2 | ±2 | 180 | 91 |
| UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
|
||||||
| Labelling |
 |
