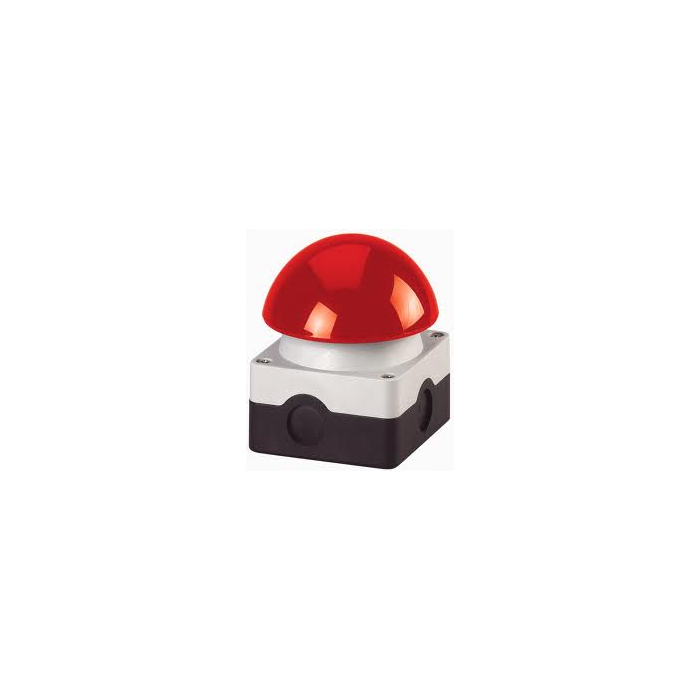

VOET- EN SLAGDRUKKNOPPEN (NOODSTOP) IP67 ROOD
€ 69,95
€ 57,81
Artikelnummer
D36031
- ArtikelnummerD36031
- MerkMOELLER
- Aantal 5+ € 62,94 € 52,02
Foot and Palm Swiches IP67, IP69K
Technical Information (FAK-S/KC11/I )
Auxiliary contacts: = safety function, by positive opening to IEC/EN 60947-5-1
1 x N/O = Normally open
1 x N/C = Normally closed
Function: Spring Return
Standards: IEC/EN 60947 and VDE 0660
Lifespan, mechanical Operations: ¡Á 10/6 > 1
Operating frequency Operations/h: ¡Ü 3600
Actuating force: 20 ¨C 40
Degree of protection, IEC/EN 60529: IP67, IP69K
Climatic proofing Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature Open ¡ãC: - 25 ¡ 40
Mounting position: As required
Mechanical shock resistance to IEC 60068-2-27: >15gr
Shock duration 11 ms, half-sinusoidal
Contacts
Rated impulse withstand voltage: 6000VAC
Rated insulation voltage: 500V
Switching capacity
Rated operational current
15 - 230VAC: 6A
13 - 24 VDC: 3A
Technical Information (FAK-S/KC11/I )
Auxiliary contacts: = safety function, by positive opening to IEC/EN 60947-5-1
1 x N/O = Normally open
1 x N/C = Normally closed
Function: Spring Return
Standards: IEC/EN 60947 and VDE 0660
Lifespan, mechanical Operations: ¡Á 10/6 > 1
Operating frequency Operations/h: ¡Ü 3600
Actuating force: 20 ¨C 40
Degree of protection, IEC/EN 60529: IP67, IP69K
Climatic proofing Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature Open ¡ãC: - 25 ¡ 40
Mounting position: As required
Mechanical shock resistance to IEC 60068-2-27: >15gr
Shock duration 11 ms, half-sinusoidal
Contacts
Rated impulse withstand voltage: 6000VAC
Rated insulation voltage: 500V
Switching capacity
Rated operational current
15 - 230VAC: 6A
13 - 24 VDC: 3A
