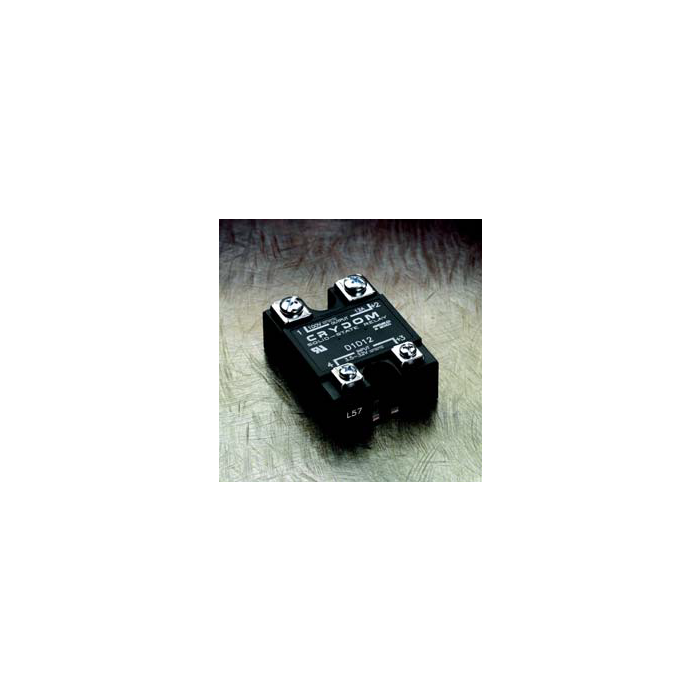

SOLID-STATE RELAIS UCONTR 3,5..32VDC / ULOAD 0..100VDC 20A
€ 109,00
€ 90,08
Artikelnummer
D1D20
- ArtikelnummerD1D20
- MerkCRYDOM
- Aantal 5+ € 98,09 € 81,07
D1D series SSRs; MOSFET output
Ratings from 7A to 40A @ 100 VDC
DC Control
Relays are easily paralleled for higher-current applications
CE Compliant to EN60950-1
OUTPUT SPECIFICATIONS (1)
Description 20A
Operating Voltage Range 0-100
Maximum Off-State Leakage Current @ Rated Voltage [mA] 0.2
Maximum Load Current (3) [Adc] 20
Minimum Load Current [mA] 1
Maximum Surge Current [Adc] (10ms) 28
Maximum On-State Voltage Drop @ Rated Current [Vdc] 1.6
Thermal Resistance Junction to Case (Rjc) [°C/W] 1.34
Maximum On-State Resistance [RDS-ON][Ohms] 0.13
INPUT SPECIFICATIONS (1)
Description DC Control
Control Voltage Range 3.5-32 VDC
Minimum Turn-On Voltage 3.5 VDC
Minimum Turn-Off Voltage 1.0 VDC
Minimum Input Current @ 5VDC 1.6 mA
Maximum Input Current @ 32VDC 28 mA
Nominal Input Impedance See Note 4
Maximum Turn-On Time [ìsec] 100
Maximum Turn-Off Time [msec] 1.0
GENERAL SPECIFICATIONS
Description Parameters
Dielectric Strength, Input/Output/Base (50/60Hz) 2500 VRMS
Minimum Insulation Resistance (@ 500 V DC) 109 Ohm
Maximum Capacitance, Input/Output 50 pF
Ambient Operating Temperature Range -20 to 80°C
Ambient Storage Temperature Range -20 to 125 °C
Weight (typical) 3.0 oz (86.5g)
Encapsulation Thermally conductive Epoxy
Terminals Screws and Saddle Clamps Furnished, Unmounted
Recommended Terminal Screw Torque Range: 6-32 Screws - 10 in lbs. 8-32 and 10-32 Screws -20 in. lbs. (Screws dry without grase)
GENERAL NOTES
1) All parameters at 25°C and per section unless otherwise specified.
2) Dielectric strength and insulation resistance are measured between input and output
Ratings from 7A to 40A @ 100 VDC
DC Control
Relays are easily paralleled for higher-current applications
CE Compliant to EN60950-1
OUTPUT SPECIFICATIONS (1)
Description 20A
Operating Voltage Range 0-100
Maximum Off-State Leakage Current @ Rated Voltage [mA] 0.2
Maximum Load Current (3) [Adc] 20
Minimum Load Current [mA] 1
Maximum Surge Current [Adc] (10ms) 28
Maximum On-State Voltage Drop @ Rated Current [Vdc] 1.6
Thermal Resistance Junction to Case (Rjc) [°C/W] 1.34
Maximum On-State Resistance [RDS-ON][Ohms] 0.13
INPUT SPECIFICATIONS (1)
Description DC Control
Control Voltage Range 3.5-32 VDC
Minimum Turn-On Voltage 3.5 VDC
Minimum Turn-Off Voltage 1.0 VDC
Minimum Input Current @ 5VDC 1.6 mA
Maximum Input Current @ 32VDC 28 mA
Nominal Input Impedance See Note 4
Maximum Turn-On Time [ìsec] 100
Maximum Turn-Off Time [msec] 1.0
GENERAL SPECIFICATIONS
Description Parameters
Dielectric Strength, Input/Output/Base (50/60Hz) 2500 VRMS
Minimum Insulation Resistance (@ 500 V DC) 109 Ohm
Maximum Capacitance, Input/Output 50 pF
Ambient Operating Temperature Range -20 to 80°C
Ambient Storage Temperature Range -20 to 125 °C
Weight (typical) 3.0 oz (86.5g)
Encapsulation Thermally conductive Epoxy
Terminals Screws and Saddle Clamps Furnished, Unmounted
Recommended Terminal Screw Torque Range: 6-32 Screws - 10 in lbs. 8-32 and 10-32 Screws -20 in. lbs. (Screws dry without grase)
GENERAL NOTES
1) All parameters at 25°C and per section unless otherwise specified.
2) Dielectric strength and insulation resistance are measured between input and output
