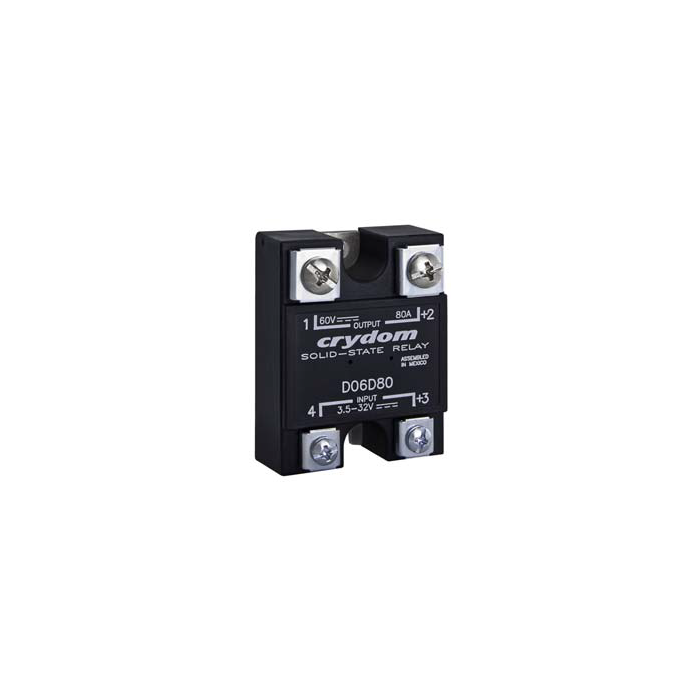

SOLID STATE RELAIS UCONTR 3,5..32VDC / ULOAD 0..60VDC 100A

• MOSFET output
• Ratings from 60A @ 60 VDC
• DC control
• Relays are easily paralleled for higher-current application

PRODUCT SELECTION
Control Voltage 100A
3.5-32 VDC D06D

OUTPUT SPECIFICATIONS
Description
Operating Voltage Range 0-60 VDC
Maximum Off-State Leakage Current @ Rated Voltage [mA] 0.3
Maximum On-State Resistance @ Rated Current [RDS-ON][Ohms] 0.005
Maximum Load Current (3) [Adc] 100
Minimum Load Current [mA] 5
Maximum Surge Current [Adc] (10ms) 270
Maximum On-State Voltage Drop @ Rated Current [Vdc] 0.5
Thermal Resistance Junction to Case (Rjc) [°C/W] 0.32

INPUT SPECIFICATIONS (1)
Description DC Control
Control Voltage Range 3.5-32 VDC
Minimum Turn-On Voltage 3.5 VDC
Minimum Turn-Off Voltage 1.0 VDC
Maximum Input Current 1.6 mA (5 VDC), 28 mA (32 VDC)
Nominal Input Impedance See Note 4
Maximum Turn-On Time [ìsec] 300
Maximum Turn-Off Time [msec] 1.0

GENERAL SPECIFICATIONS
Description Parameters
Dielectric Strength, Input/Output/Base (50/60Hz) 2500 Vrms
Minimum Insulation Resistance (@ 500 V DC) 109 Ohm
Maximum Capacitance, Input/Output 50 pF
Ambient Operating Temperature Range -30 to 80°C
Ambient Storage Temperature Range -40 to 125 °C
Weight (typical) 3.0 oz (86.5g)
Encapsulation Thermally conductive Epoxy
Terminals Screws and Saddle Clamps Furnished, Unmounted
Recommended Terminal Screw Torque Range: 6-32 Screws - 10 in lbs. 8-32 and 10-32 Screws -20 in. lbs. (Screws dry without grase)

GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Dielectric strength and insulation resistance are measured between input and output.
