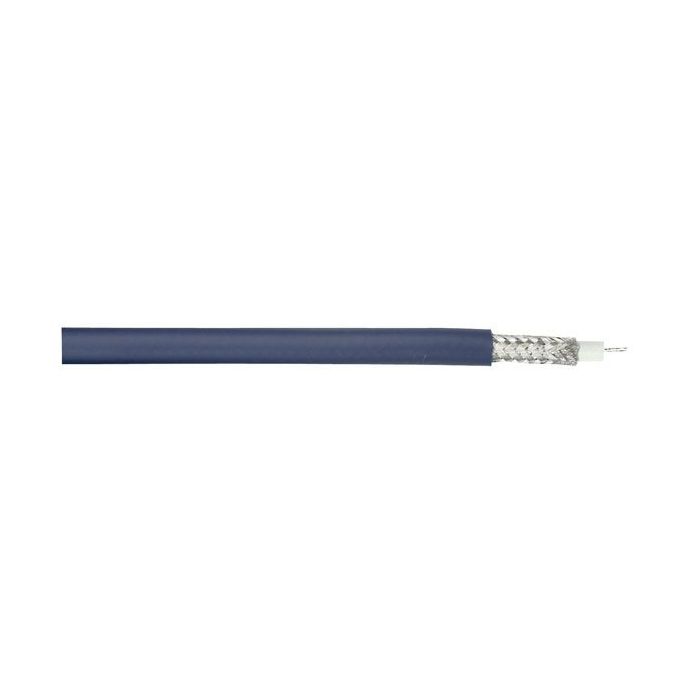

COAX RG59 BLAUW 75 OHM 6.2MM FLEXIBLE
€ 2,50
€ 2,07
Artikelnummer
RG59FLEX
- ArtikelnummerRG59FLEX
- MerkBrand
- Aantal 50+ € 2,25 € 1,86
Conductor drains: Ø 7 x 0.3 mm Oxygen Free Copper
Conductor insulation: Ø 3,7 mm Foam Polyethylene
Conductor resistance: 34,85 Ohm
Shield-1: 16 x 7 x 0,12 braided silver plated copper
Shield-2: 16 x 8 x 0,12 braided Oxygen Free Copper
Outer Jacket: Ø 6 mm matte blue PVC
Nominal Capacitance: 56 pF/m
Nominal impedance: 75 Ohm
Weight/100m: 7.0 kg
Nominal Attenuation / 100m:
71,5 MHz: 10.0 dB / 135 MHz: 12.5 dB / 270 MHz: 17.7 dB / 360 MHz: 20.3 dB / 540 MHz: 25.3 dB / 750 MHz: 31.5 dB / 1500 MHz: 42.6 dB / 3000 MHz: 60.7 dB
Conductor insulation: Ø 3,7 mm Foam Polyethylene
Conductor resistance: 34,85 Ohm
Shield-1: 16 x 7 x 0,12 braided silver plated copper
Shield-2: 16 x 8 x 0,12 braided Oxygen Free Copper
Outer Jacket: Ø 6 mm matte blue PVC
Nominal Capacitance: 56 pF/m
Nominal impedance: 75 Ohm
Weight/100m: 7.0 kg
Nominal Attenuation / 100m:
71,5 MHz: 10.0 dB / 135 MHz: 12.5 dB / 270 MHz: 17.7 dB / 360 MHz: 20.3 dB / 540 MHz: 25.3 dB / 750 MHz: 31.5 dB / 1500 MHz: 42.6 dB / 3000 MHz: 60.7 dB
