SMALL DIAGRAM PENCIL CONDENSER MICROFOON

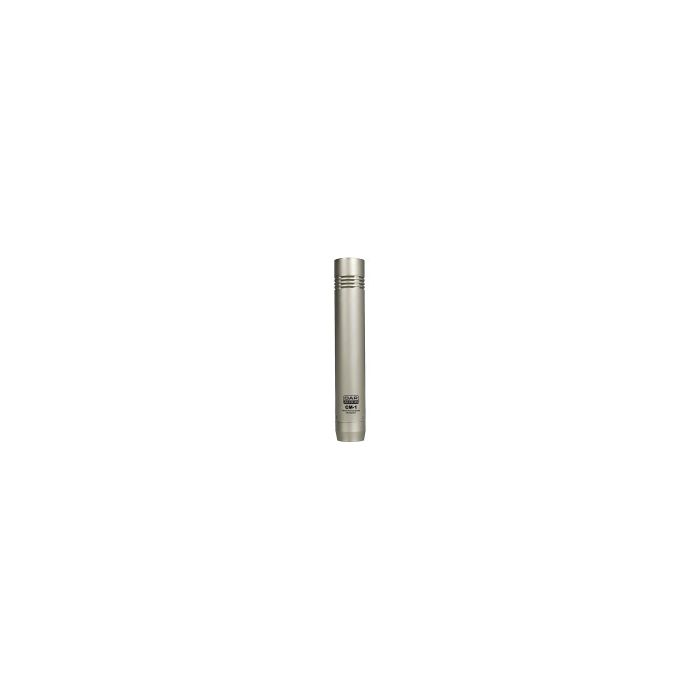

The DAP CM-1 is a thin model condenser-microphone that comes with a cardioid and omni element. Depending on the application or personal taste the element can be exchanged. The CM-1 is ideally suited as a microphone for recording live ambient, drum overhead or acoustic instruments.

Type: Condenser
Freq. response: 30 Hz - 22 kHz (-3 dB)
Polar pattern: omni or cardioid
Sensitivity: 10 mV/Pa -40 dB -
Max. SPL: 132 dB
Impedance: 200 Ohm
power supply: +48V phantom
Connector: XLR male type
Net weight: 130 g
Dimensions: 23 mm (diameter) x L 150 mm
Accessories: microphone-clip
