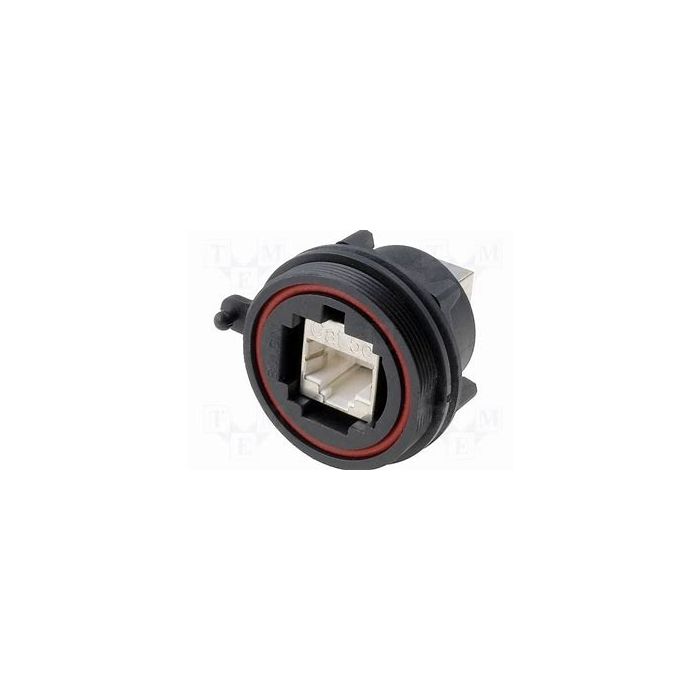

CHASSISDEEL RJ45 FEMALE CAT5E IP68
€ 67,51
€ 55,79
Artikelnummer
PX0833
- ArtikelnummerPX0833
- MerkBULGIN
- Aantal 5+ € 60,75 € 50,21
Features
| • Dust and waterproof sealing when mated • Cat.5e compliant: Data rate up to 100MHz • PUR jacket on cable and shielded system: high noise immunity and EMI protection • Cat.5e shielded coupler • Shroud on RJ45: Protection from abouse and mis-mating • Screw coupling: secure, proven locking system • PCB mounted panel connector • IDC termination panel connector |
 |
| Technical Specifications |
|
|
| Pole: | 4 |
| Housing Material: | PVC, UL94V-0 |
| Colour: | Black |
| Contact Material: | Phosphor Bronze |
| Contact Surface: | Gold-plated |
| Rated Current: | 1,5A |
| Rated Voltage: | 30V AC |
| Temperature Range: | -20...+70°C |
Features
| • Cat 5e shielded coupler • Matex with PX0834/B flex connector • Standard RJ45 can be plugged intro rear • Single hole fixing • With panel sealing gasket |
