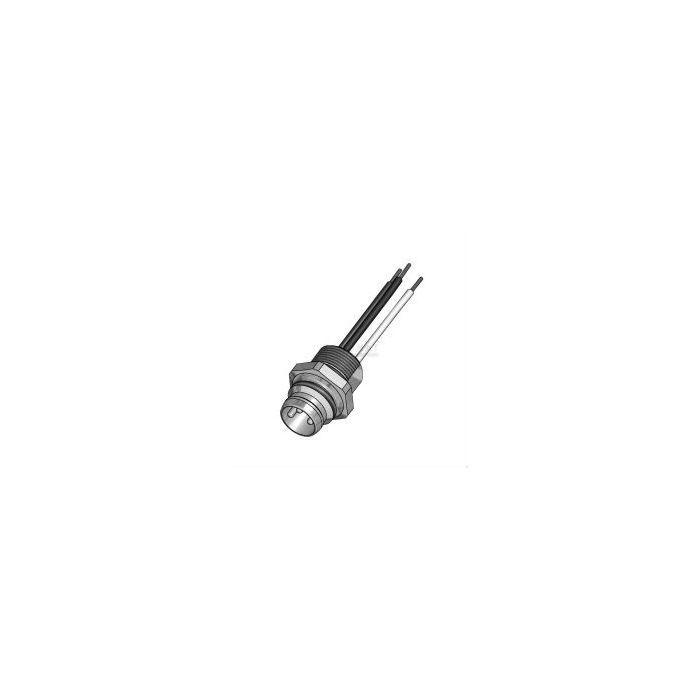

CHASSIS M8X1 MALE 3P KABEL 20CM 0,20MM2
€ 9,95
€ 8,22
Artikelnummer
M8CM03
- ArtikelnummerM8CM03
- MerkCONEC
- Aantal 5+ € 9,44 € 7,80
Features
| • Cable connectors with screw locking • Fixing thread M8x1 • Panel mounting with M8-0,5-thread (the fixing nuts must be ordered separately, see Note) • Cable PVC, AWG24, UL • Cable length: 0,2m |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Connection Type | Screw |
| Panel Connector: | M8x0,5 |
| Degree of Protection: | IP671) |
| Temperature Range: | -30...+80°C |
| Rated Voltage | |
| 3-pole: | 60V |
| 4-pole: | 30V |
| Rated Current (40°C): | 3A |
| Insulation Resistance, Max., Min.: | 100MOhm |
| Mating Cycles, Min.: | 100 |
| Material of Contact: | CuZn |
| Contact Plating: | Ni-plated, Au-plated |
| 1) in Mated Condition | |
