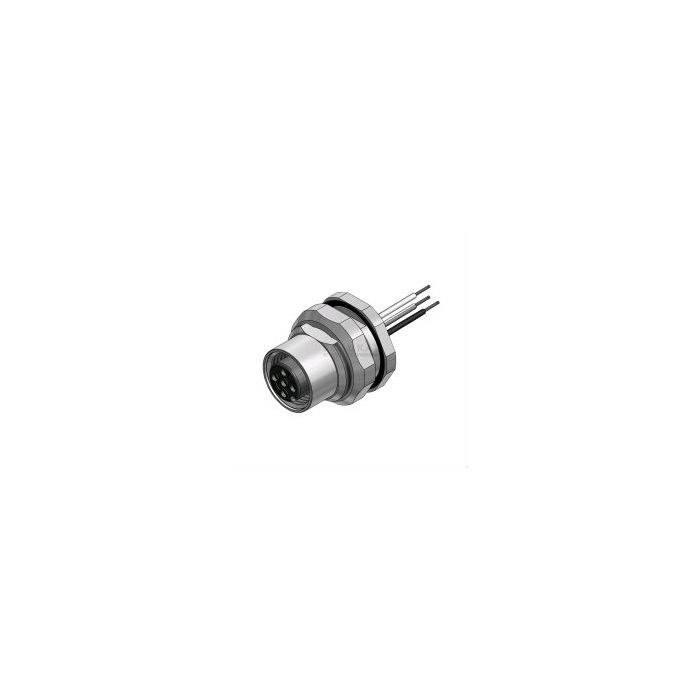

CHASSIS M12X1 FEMALE 5P BACK KABEL 50CM 0,2MM2
€ 11,25
€ 9,30
Artikelnummer
M12ACF5B
- ArtikelnummerM12ACF5B
- MerkCONEC
- Aantal 5+ € 10,68 € 8,83
Features
| • Cable connectors with screw locking • Fixing thread M12x1 • Panel mounting with M16-1,5-thead (the fixing nuts must be ordered separately, see Note) • Cable PVC, AWG24, UL • Cable length: 0,5m |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Connection Type | Screw |
| Panel Connector: | M16x1,5 |
| Degree of Protection: | IP671) |
| Temperature Range: | -30...+80°C |
| Rated Voltage | |
| 4-polig: | 250V |
| 5-polig: | 60V |
| Rated Current (40°C): | 4A |
| Insulation Resistance, Min.: | 100MOhm |
| Mating Cycles, Min.: | 100 |
| Material of Contact: | CuZn |
| Contact Plating: | Ni-plated, Au-plated |
| 1) in Mated Condition | |
