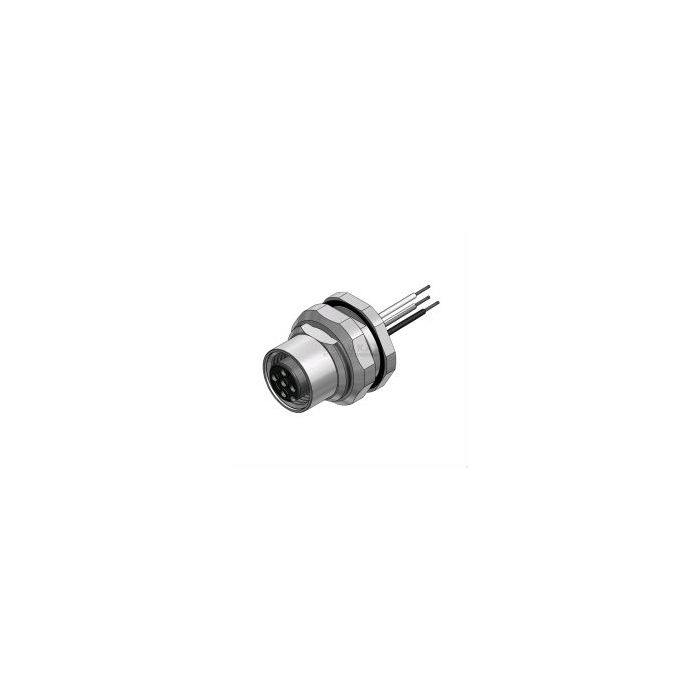

CHASSIS M12X1 FEMALE 4P BACK 50CM KABEL 50CM 0,2MM2

€ 10,95 € 9,05
Artikelnummer
M12ACF4B
  • ArtikelnummerM12ACF4B
  • MerkCONEC
  • Aantal 5+   € 10,39 € 8,59
Print deze pagina Print deze pagina

Features

• Cable connectors with screw locking
• Fixing thread M12x1
• Panel mounting with M16-1,5-thead (the fixing nuts must be ordered separately, see Note)
• Cable PVC, AWG24, UL
• Cable length: 0,5m
Technical Specifications

Connector Locking System: Screw
Connection Type Screw
Panel Connector: M16x1,5
Degree of Protection: IP671)
Temperature Range: -30...+80°C
Rated Voltage
4-polig: 250V
5-polig: 60V
Rated Current (40°C): 4A
Insulation Resistance, Min.: 100MOhm
Mating Cycles, Min.: 100
Material of Contact: CuZn
Contact Plating: Ni-plated, Au-plated
1) in Mated Condition
