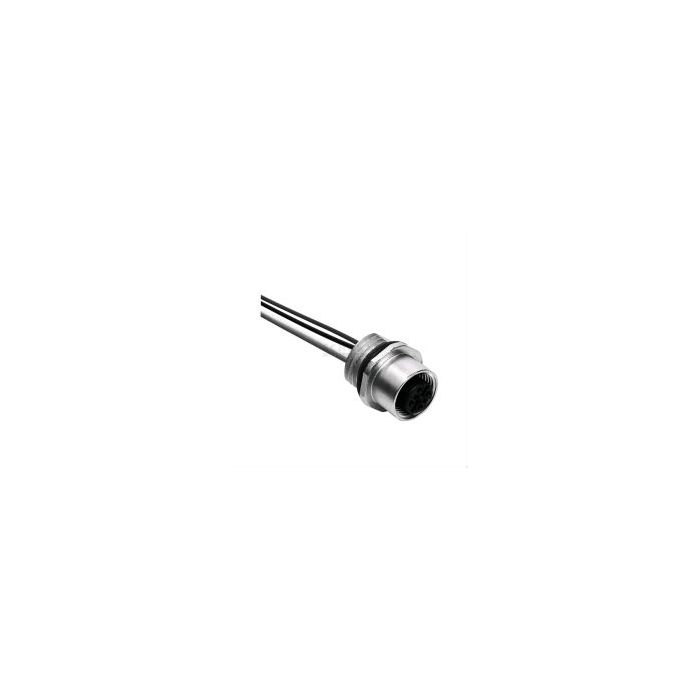

CHASSIS FEMALE 4P MET DRAAD 0.25MM2 IP68

Features • Cable connectors with screw locking • With wire 0,25mm2 • Thread locking M12x1 • Fixing thread M16x1,5 • Shield connection with shield ring/iris type spring • UL versions • Degree of protection IP67 Technical Specifications Connector Locking System: Screw Termination: Solder Wire Gauge, Max.: 0,25mm2 Degree of Protection: IP68 Mechanical Operating Life: >100 Cycles Temperature Range: -25...+85°C Rated Voltage BIN09-_-70004: 250V BIN09-_-70005: 125V Rated Current (40°C): 4A Contact Resistance, Max.: 3mW Material of Contact: CuZn, Gold-plated Material of Housing: Zn (Diecasting), Nickel-plated
