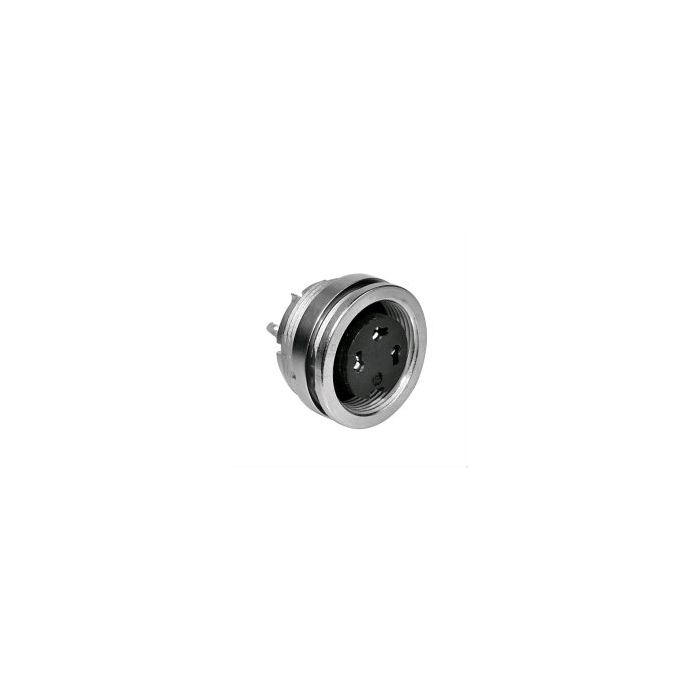

CHASSIS FEMALE 3P SOLDEER IP67
€ 14,50
€ 11,98
Artikelnummer
M16CF03
- ArtikelnummerM16CF03
- MerkBINDER
- Aantal 5+ € 13,77 € 11,38
Features
| • Panel mounting connectors with screw locking according to IEC60130-9 • Precision metal construction • excellent EMC shielding • Degree of protection IP67 |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Termination: | Solder |
| Wire Gauge, Max. | |
| M16CF-03, -05, -0008: | 0,75mm2 |
| M16CF-12: | 0,25mm2 |
| Degree of Protection: | IP67 |
| Mechanical Operating Life: | >500 Cycles |
| Temperature Range: | -30...+95°C |
| Rated Voltage: | see Table |
| Rated Current (40°C): | see Table |
| Contact Resistance, Max.: | see Table |
| Material of Contact: | CuZn |
| Material of Housing: | Zn (Diecasting), Nickel-plated |
|
|
| Part-Nr. | Pole | UN | IN | R | Contact |
| [V] | [A] | [mOhm] | Plating | ||
| BIN09-0108-0003 | 3 | 250 (32) | 7 | 5 | Ag |
| BIN09-0116-0005 | 5 | 250 (32) | 6 | 5 | Ag |
| BIN09-0174-0008 | 8 | 60 (32) | 5 | 5 | Ag |
| BIN09-0132-0012 | 12 | 60 (32) | 3 | 3 | Au |
| UN = Rated Voltage, IN = Rated Current (40°C), R = Contact Resistance, Max. | |||||
