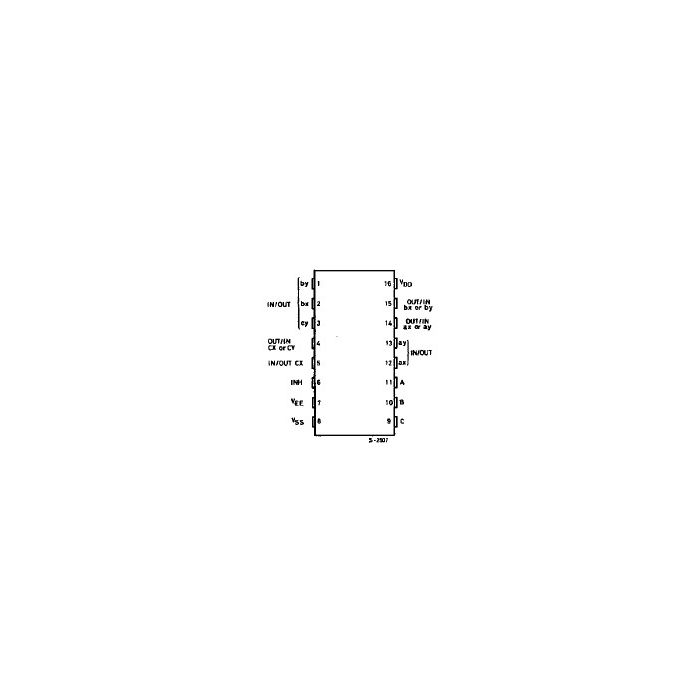

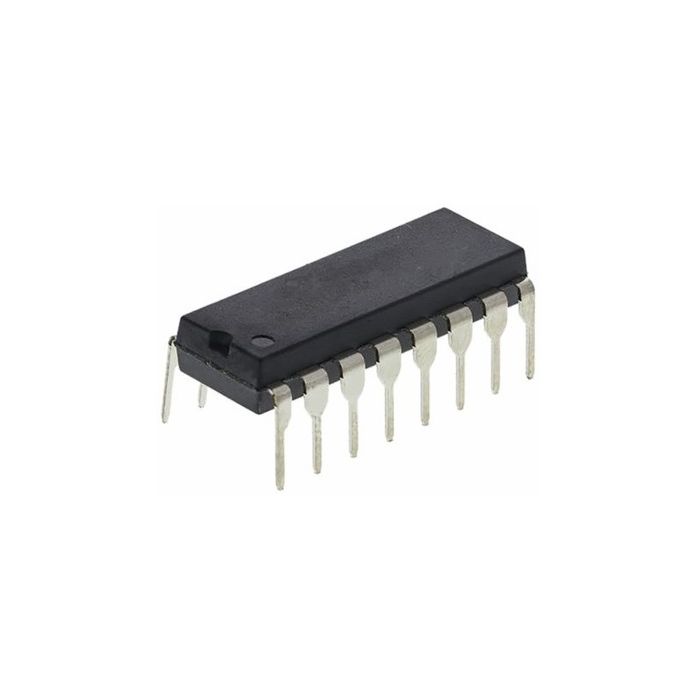

ANAL MTPX DEM MULTIPLEX 16P

QUIESCENT CURRENT SPECIFIED TO 20V
.FOR HCC DEVICE LOW ”ON” RESISTANCE : 125W (typ.) OVER
15V p.p. SIGNAL-INPUT RANGE FOR VDD.
VEE = 15V HIGH ”OFF” RESISTANCE : CHANNEL LEAK.
AGE ± 100pA (typ.) VDD – VEE = 18V .BINARY ADDRESSDECODING ON CHIP VERY LOW QUIESCENT POWER DISSIPATION
UNDER ALL DIGITAL CONTROL INPUT
AND SUPPLY CONDITIONS : 0.2 mW (typ.),
.VDD – VSS = VDD – VEE = 10V MATCHED SWITCH CHARACTERISTICS :
.RON = 5W (typ.) for VDD – VEE = 15V WIDE RANGEOF DIGITALAND ANALOG SIGNAL
LEVELS : DIGITAL3 TO 20V, ANALOG TO
.20V p.p. .5V, 10V, AND 15V PARAMETRIC RATINGS INPUT CURRENT OF 100mA AT 18V AND
.25°C FOR HCC DEVICE .100% TESTEDFOR QUIESCENT CURRENT MEETSALLREQUIREMENTSOFJEDECTENTATIVE
STANDARD No 13A, ”STANDARD
SPECIFICATIONS FOR DESCRIPTION OF ”B”
SERIESCMOS DEVICES”
