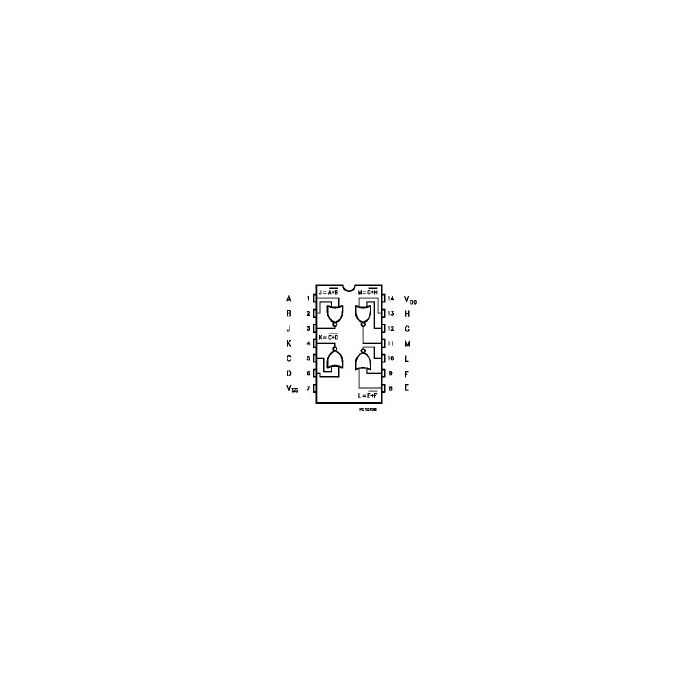

QUAD 2IN NOR GATE 14P

4001B–QUAD 2 INPUT
.PROPAGATION DELAY TIME = 60 ns (typ.) AT
.CL = 50 pF, VDD = 10 V .BUFFERED INPUTS AND OUTPUTS STANDARDIZED SYMMETRICAL OUTPUT
.CHARACTERISTICS QUIESCENT CURRENT SPECIFIED TO 20 V
.FOR HCC DEVICE .5V, 10V AND 15V PARAMETRIC RATINGS INPUT CURRENTOF 100nA AT 18V AND25 oC
.FOR HCC DEVICE .100% TESTEDFOR QUIESCENT CURRENT MEETSALLREQUIREMENTSOFJEDECTENTATIVE
STANDARD N. 13A, ” STANDARD
SPECIFICATIONS FOR DESCRIPTION OF B
SERIESCMOS DEVICES ”
