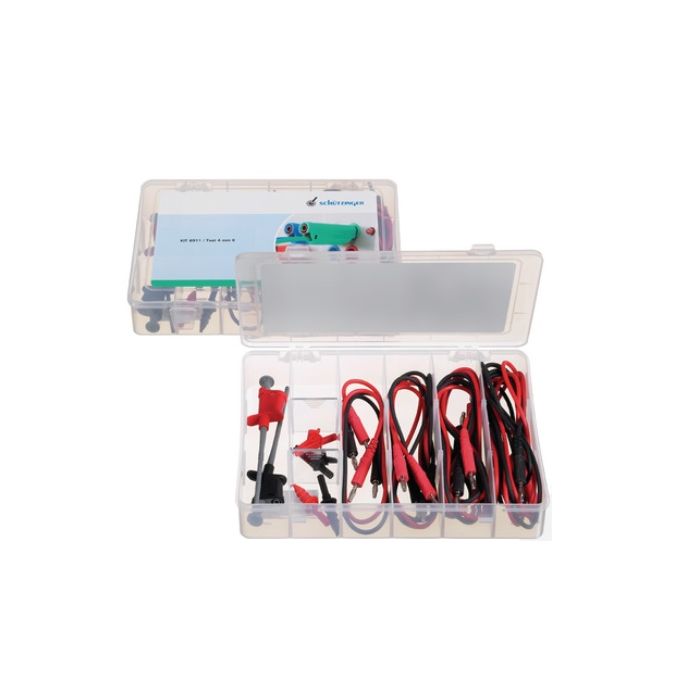

CAT I TEST EQUIPMENT KIT FOR 4MM SYSTEMS, 14 DELIG

Technical Specifications

Terminal:	Pluggable
Rated Current:	16A
Rated Voltage:	33V AC / 70V DC
Operating Temperature Range:	-10°C...+70°C

Features
Content:
• Two measuring leads, 2 lamella-basket plugs Ø 4mm made-up on highly flexible PVC-double-insulated lead 1mm², Length: 0,5m. Colours: 1x black and 1x red.
• Two measuring leads as above, length 1m however.
• Two measuring leads as above, length 1,5m however.
• Two measuring leads as above, length 2m however.
• Two pincer clip, safety socket Ø 4mm, with flexible shaft and spring wire grabber (stainless steel) for a good contaczs to pins and wires in inacceplable places. Colours: 1x black and 1x red.
• Two safety crocodile clips with safety socket Ø 4mm, with flexible shaft and spring wire grabber (stainless steel) for a good contaczs to pins and wires in inacceplable places. Colours: 1x black and 1x red.
• Two safety test probes with axial safety socket Ø 4mm. The over moulding procection is included. Colours: 1x black and 1x red.
