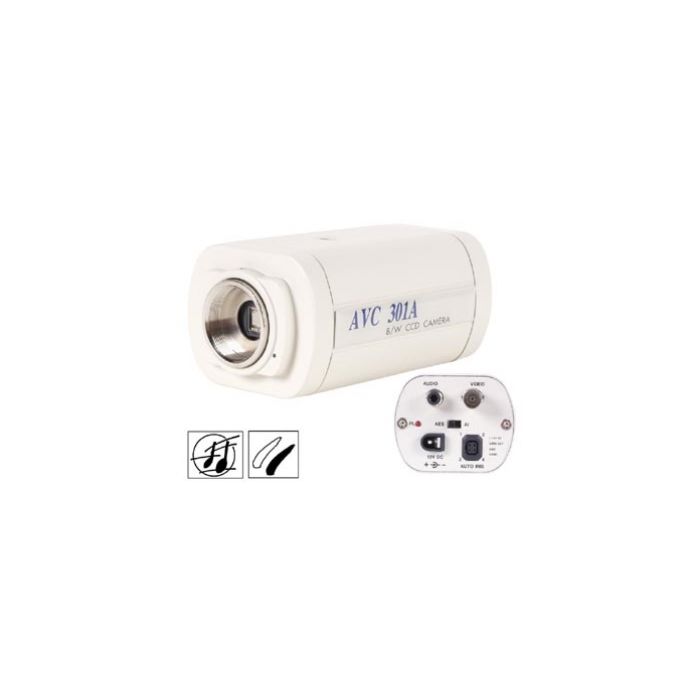

CCD CAM Z/W + BEH + MIC

Features
1/3\" CCD B/W camera
auto iris control
audio output

Specifications
pick-up element : 1/3\" Samsung B/W CCD image sensor
number of pixels : 500(H) x 582(V) -CCIR-
resolution : 380 TV lines
min. illumination : 0.5Lux / F2.0
S/N ratio : > 48dB (AGC off)
electronic shutter : 1/50 to 1/100000 sec.
auto iris : choice between AI (use with auto iris lens (video drive)) & AES (auto electronic shutter)
microphone : high sensitivity
load impedance : 75ohm
lens : no lens
power source : DC 12V ± 10%
current consumption : 120mA
weight : 262g
dimensions : 107 x 60 x 50mm
