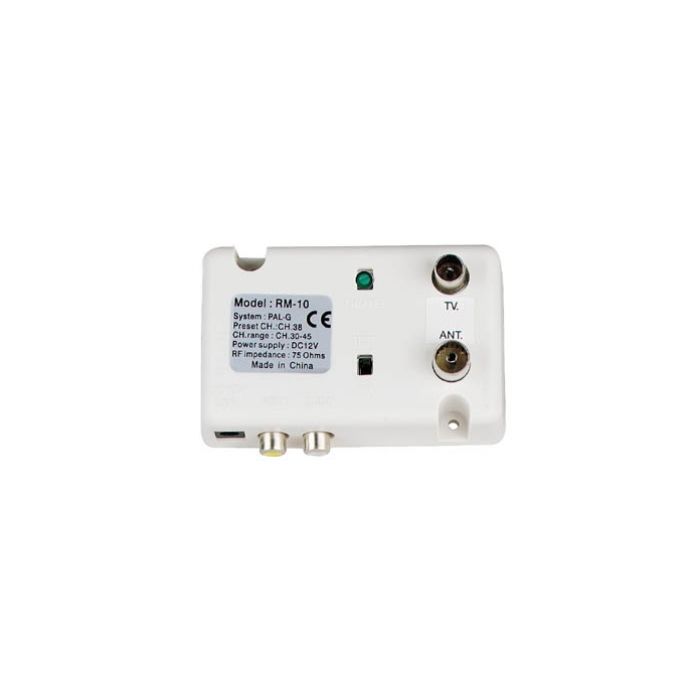

MODULATOR VOOR CCD CAMERA

This modulator is used to convert standard composite video and sound signals into a modulated UHF carrier which can be tuned in on a domestic television and/or VCR. For use with a CCD camera.
Typical applications :
connecting CCTV equipment to domestic televisions and video recorders not equipped with European standard SCART sockets or connection to an antenna distribution system so the camera picture can be viewed in various parts of the premises.

Features
contents :
1 CAMRFM modulator
1 antenna connector lead
1 power adapter (12Vdc / 500mA)

Specifications
system : PAL-G
preset channel : CH 38
channel range : CH 30 - 45
power supply : AC adapter / 12Vdc
power consumption : 140mA max.
audio/video input via RCA socket
RF impedance : 75ohm
operating temperature : 0°C to +60°C
