BNC MALE RG59 PUSH-PULL
€ 5,95
€ 4,92
Artikelnummer
NBNC75BLP9
- ArtikelnummerNBNC75BLP9
- MerkNEUTRIK
- Aantal 10+ € 5,35 € 4,42

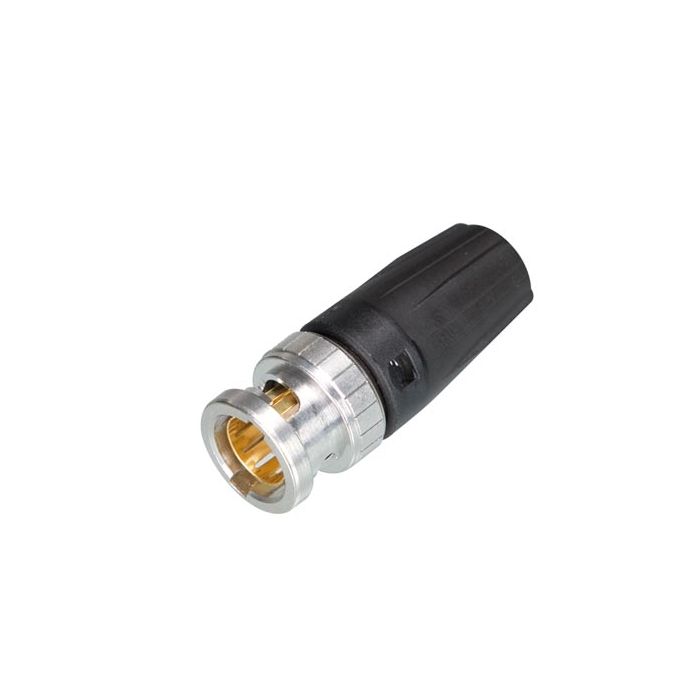

The rearTWIST BNC cable connector offers a true 75 ohm design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers colour coding.
Kenmerken
- "rearTWIST Principle" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
- true 75 ohm design meets the stringent HDTV / DVD requirements
- leading area: avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- snug-fit centre pin insert provides tactile feedback
- shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- excellent cable protection and retention
- precise Swiss machined brass parts for outstanding durability
- accessories include colour-coded boots in 10 standard colours, crimp tool and dies
Specificaties
- crimp size:
- pin: 1.6 mm (square)
- shield: 6.47 mm (hex)
