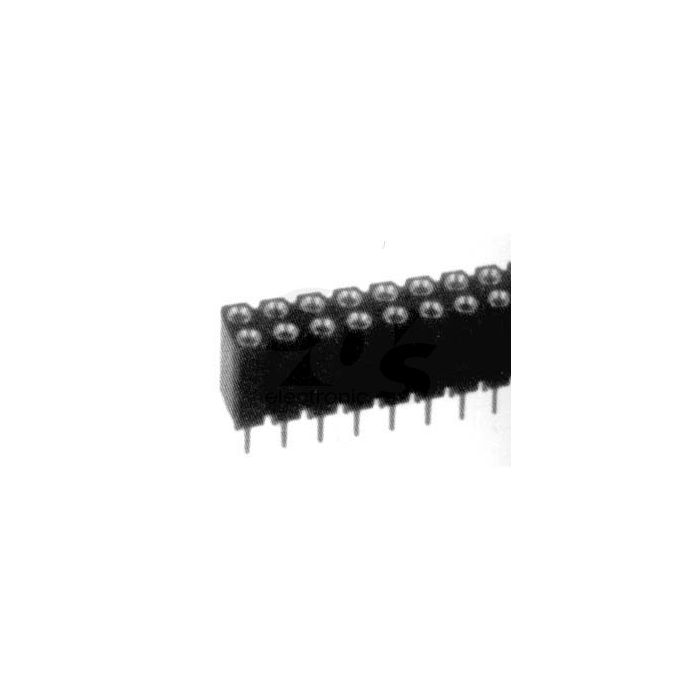

HEADER 2X20P FEMALE DUAL IN LINE RASTER 2.54MM 10 STUKS
€ 14,96
€ 12,36
Artikelnummer
BL20S020PF
- ArtikelnummerBL20S020PF
- MerkMPE GARRY
- Aantal 10+ € 12,71 € 10,50
Precision Female Headers
Series: BL10, BL20S Single and Double Row, Straight Height: 7,0mm Pitch:2,54mm
Features
Selective gold-plated design
With 6 beryllium copper fingerclips
Suitable for square pins 0,64x0,64mm or round pins with Ø 0,7...0,8mm
BL20S_: Star-shaped opening between the contacts for easy cutting
Technical Specifications
Insulation Shell: High Temp. Thermoplast (UL94V-0), Black
Contact Material
Solder Pin: Cu-alloy
Clip: BeCu
Contact Surface: Au (Selective Gold-plated.)
Rated Current: 3A
Rated Voltage: 250VRMS/250V DC
Breakdown Voltage, Min.: 1000VRMS
Temperature Range: -55...+125°C
Solderability, Max.: 260°C, 10s
Series: BL10, BL20S Single and Double Row, Straight Height: 7,0mm Pitch:2,54mm
Features
Selective gold-plated design
With 6 beryllium copper fingerclips
Suitable for square pins 0,64x0,64mm or round pins with Ø 0,7...0,8mm
BL20S_: Star-shaped opening between the contacts for easy cutting
Technical Specifications
Insulation Shell: High Temp. Thermoplast (UL94V-0), Black
Contact Material
Solder Pin: Cu-alloy
Clip: BeCu
Contact Surface: Au (Selective Gold-plated.)
Rated Current: 3A
Rated Voltage: 250VRMS/250V DC
Breakdown Voltage, Min.: 1000VRMS
Temperature Range: -55...+125°C
Solderability, Max.: 260°C, 10s
