SPEAKER BREEDBAND 8OHM 40/70W 38-18000HZ 92DB 197MM
€ 42,50
€ 35,12
Artikelnummer
BG20
- ArtikelnummerBG20
- MerkVISATON
- Aantal 3+ € 40,37 € 33,36

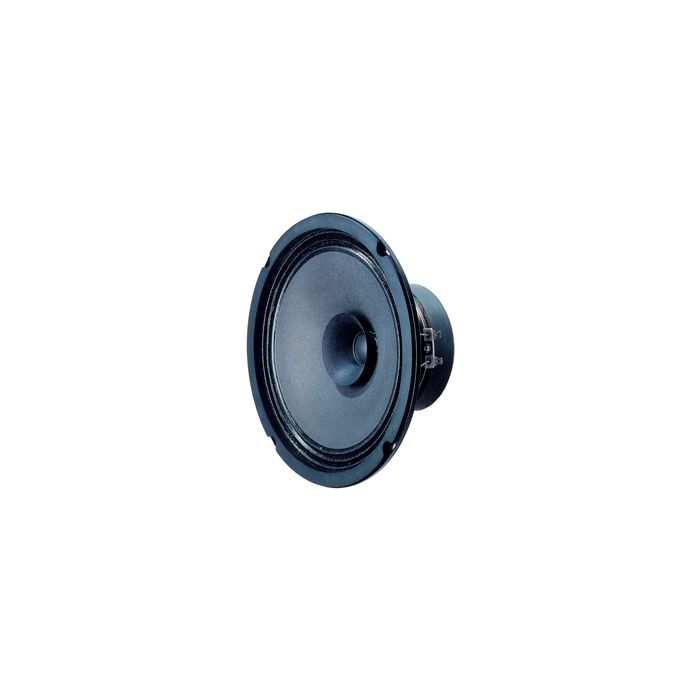

20cm breedbandluidspreker mer een konus-tweeter. Zeer goed in te zetten voor omroepsystemen.
Impedantie: 8 Ohm
Belastbaarheid: 40 Watt nominaal
70 watt maximaal
Frequentie bereik: 5018000 Hz
Technical Data:
Rated power: 40 Watt
Maximum power: 70 Watt
Nominal impedance: 8 Ohm
Frequency response: fu18000 Hz (fu: Lower cut-off frequency depending on cabinet)
Mean sound pressure level: 92 dB (1 W/1 m)
Maximum cone displacement: 8 mm
Resonance frequency: fs 38 Hz
Magnetic induction 1,2 T
Magnetic flux 380 µWb
Height of front pole-plate: 4 mm
Voice coil diameter: 25 mm
Height of winding: 8 mm
Cutout diameter: 184 mm
Net weight: 1,3 kg
D.C. resistance: Rdc 6,2 Ohm
Mechanical Q factor: Qms 3,47
Electrical Q factor: Qes 0,51
Total Q factor: Qts 0,44
Equivalent volume: Vas 110 l
Effective piston area: Sd 214 cm²
Dynamically moved mass: Mms 10 g
Force factor: Bxl 6,1 T m
Inductance of the voice coil: L 0,8 mH
Heat resistance: −25 ... 70 °C
