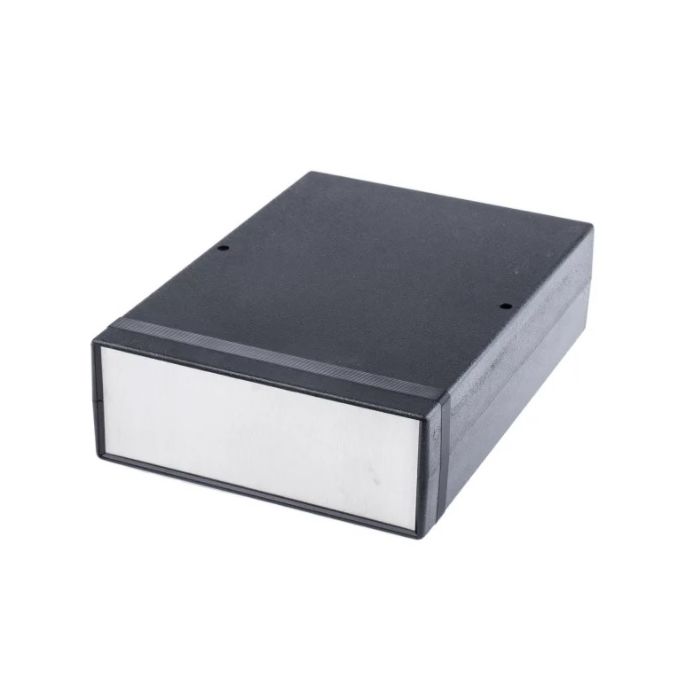

BEHUIZING 280X200X76MM ABS ZWART EN ALUMINIUM FRONT
€ 39,95
€ 33,02
Artikelnummer
HM1598JBK
- ArtikelnummerHM1598JBK
- MerkHAMMOND
- Aantal 5+ € 37,95 € 31,36
| Features |
| • Enclosures in black made of ABS plastic, UL94V-0 (flame-retardan) • Ideally suited for mounting printed circuit boards • Two sets of vertical 1.5 mm (0.062") PCB guides are molded into the front and rear halves of the housing • Front and rear panels are made of 1.6 mm (0.064") brushed aluminium with protective paper on one side. • Meets protection class IP54 • Integrated horizontal PCB mounting on Eurocard centers • Cover and body base secured with M3 x 0.5" x 10 mm (0.39") Phillips machine screws screwed into brass threaded bushes |
 |
| Dimensions |
| Part Nr. | Length | Width | Height* |
| [mm] | [mm] | [mm] | |
| HM1598BBK | 134,3 | 135,2 | 51 |
| HM1598ABK | 156,5 | 93,4 | 35 |
| HM1598EBK | 160,3 | 158,6 | 85,2 |
| HM1598BBBK | 179 | 154,5 | 35 |
| HM1598CBK | 179,5 | 154 | 51 |
| HM1598DBK | 179,5 | 205,1 | 63,2 |
| HM1598FBK | 249,7 | 159,2 | 40,9 |
| HM1598GBK | 249,7 | 159 | 75 |
| HM1598HBK | 280,9 | 200 | 41 |
| HM1598JBK | 280,1 | 199,5 | 75,8 |
| *Height with Lid | |||
