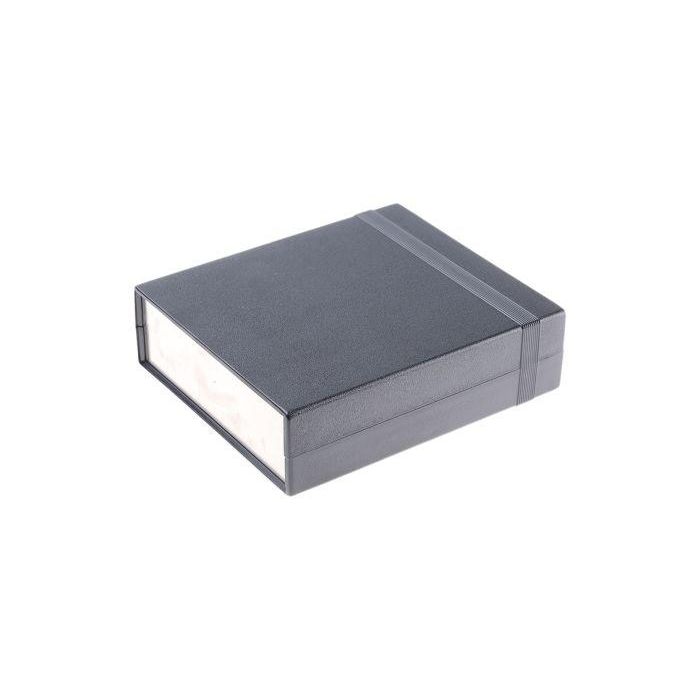

BEHUIZING 180X154X51MM ABS ZWART EN ALUMINIUM FRONT

€ 22,95 € 18,97
Artikelnummer
HM1598CBK
  • ArtikelnummerHM1598CBK
  • MerkHAMMOND
  • Aantal 5+   € 21,80 € 18,02
Print deze pagina Print deze pagina

.

Features
• Enclosures in black made of ABS plastic, UL94V-0 (flame-retardan)
• Ideally suited for mounting printed circuit boards
• Two sets of vertical 1.5 mm (0.062") PCB guides are molded into the front and rear halves of the housing
• Front and rear panels are made of 1.6 mm (0.064") brushed aluminium with protective paper on one side.
• Meets protection class IP54
• Integrated horizontal PCB mounting on Eurocard centers
• Cover and body base secured with M3 x 0.5" x 10 mm (0.39") Phillips machine screws screwed into brass threaded bushes
Dimensions

Part Nr. Length Width Height*
  [mm] [mm] [mm]
HM1598BBK 134,3 135,2 51
HM1598ABK 156,5 93,4 35
HM1598EBK 160,3 158,6 85,2
HM1598BBBK 179 154,5 35
HM1598CBK 179,5 154 51
HM1598DBK 179,5 205,1 63,2
HM1598FBK 249,7 159,2 40,9
HM1598GBK 249,7 159 75
HM1598HBK 280,9 200 41
HM1598JBK 280,1 199,5 75,8
*Height with Lid
