VSA / VOORSCHAKELAPPARAAT ELECTRONISCH T5 TC-L TC-F TC-T/E TC-T/E T-R5

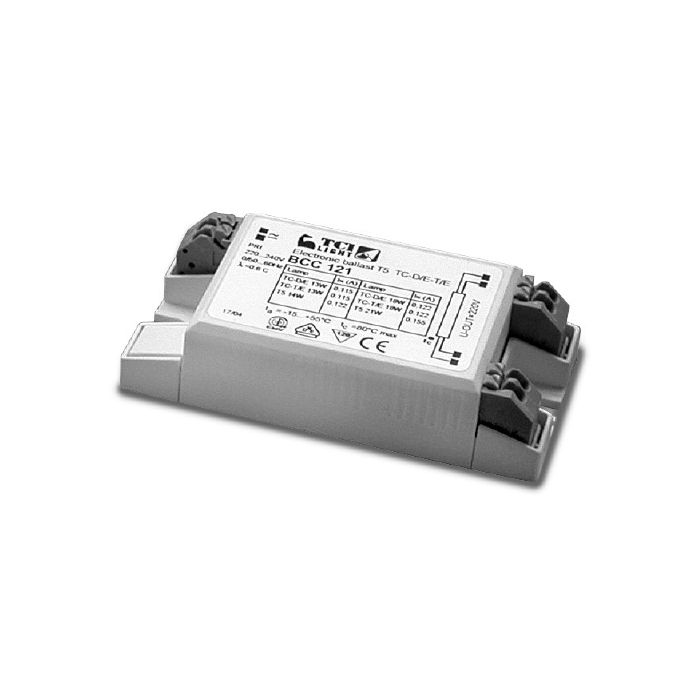

Compact size electronic ballast to be built-in.
• Suitable for connection to emergency equipment
in compliance with EN 60598-2-22.
• It can be used for lighting equipment in protection
class I and II.
• Sizes are compatible with mechanical ballast.
• Push-wire connections.
• Input and output terminal blocks on opposite sides.
• Ballast can be secured with slots for screws M4.
• Start with preheating to increase the life of
the lamp.
• Protections:
- disconnection of the lamp (restart with
preheating);
- lamp failure;
- end of lamp life.
• EMC compliance in 0 and 60 Hz operation relies
upon the luminaire manufacturer.

Model: BCC 126
Code: 137949HTC
Afmeting: 80x41x18mm
Gewicht: 40gram

Lamp: T5
Fitting: G5
Vermogen: 1x24W

Lamp: TC-L
Fitting: 2G11
Vermogen: 1x24W

Lamp: TC-F
Fitting: 2G10
Vermogen: 1x24W

Lamp: TC-D/E
Fitting: G24q-3
Vermogen: 1x26W

Lamp: TC-T/E
Fitting: GX24q-3
Vermogen: 1x26W

Lamp: T-R5
Fitting: 2GX13
Vermogen: 1x22W
