VSA / VOORSCHAKELAPPARAAT ELECTRONISCH T5 T8 TC-L LC-F T-R580X41X18MM

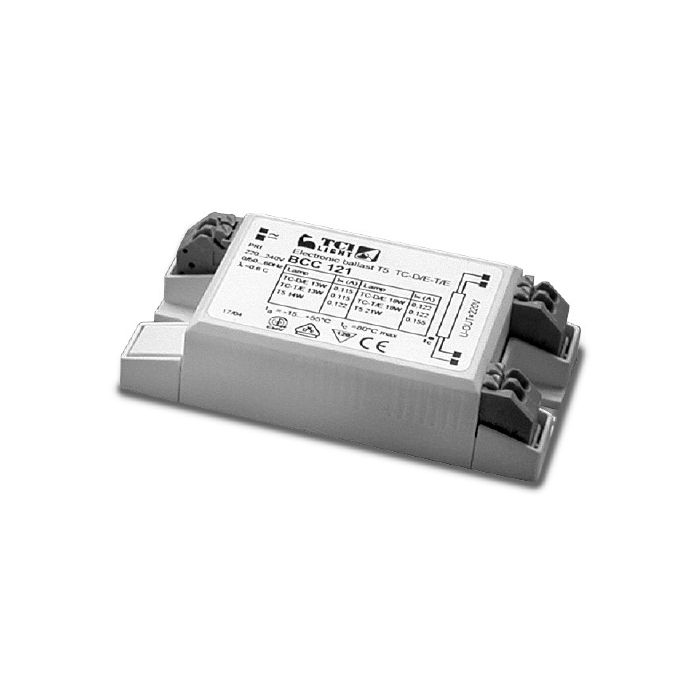

Compact size electronic ballast to be built-in.
• Suitable for connection to emergency equipment
in compliance with EN 60598-2-22.
• It can be used for lighting equipment in protection
class I and II.
• Sizes are compatible with mechanical ballast.
• Push-wire connections.
• Input and output terminal blocks on opposite sides.
• Ballast can be secured with slots for screws M4.
• Start with preheating to increase the life of
the lamp.
• Protections:
- disconnection of the lamp (restart with
preheating);
- lamp failure;
- end of lamp life.
• EMC compliance in 0 and 60 Hz operation relies
upon the luminaire manufacturer.

Model: BCC 124
Code: 137947HTC
Afmeting: 80x41x18mm
Gewicht: 40gram

Lamp: T5
Fitting: G5
Vermogen: 1x24W

Lamp: T8
Fitting: G13
Vermogen: 1x14-15-18W

Lamp: TC-L
Fitting: 2G11
Vermogen: 1x18-24W

Lamp: TC-F
Fitting: 2G10
Vermogen: 1x18-24W


Lamp: T-R5
Fitting: 2GX13
Vermogen: 1x22W
