VSA / VOORSCHAKELAPPARAAT ELECTRONISCH T5 TC-D/E TC-T/E 80X41X18MM

Compact size electronic ballast to be built-in.
• Suitable for connection to emergency equipment
in compliance with EN 60598-2-22.
• It can be used for lighting equipment in protection
class I and II.
• Sizes are compatible with mechanical ballast.
• Push-wire connections.
• Input and output terminal blocks on opposite sides.
• Ballast can be secured with slots for screws M4.
• Start with preheating to increase the life of
the lamp.
• Protections:
- disconnection of the lamp (restart with
preheating);
- lamp failure;
- end of lamp life.
• EMC compliance in 0 and 60 Hz operation relies
upon the luminaire manufacturer.

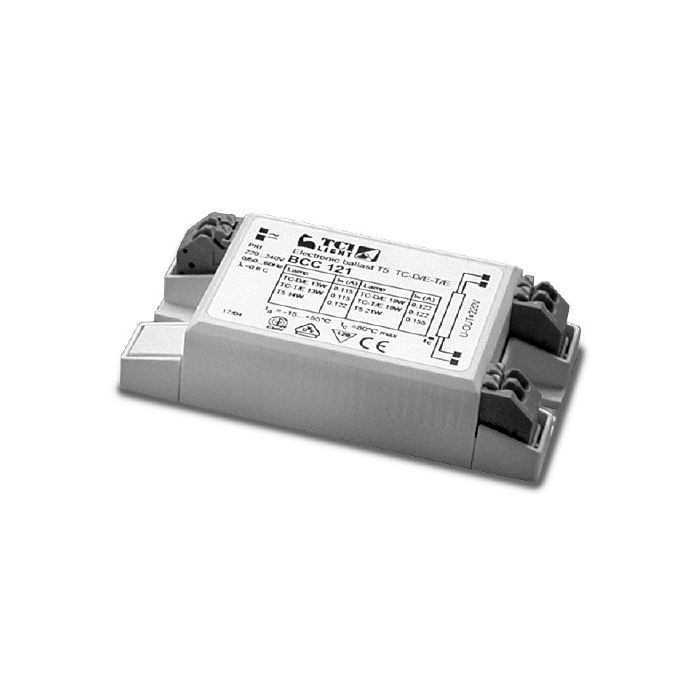

Model: BCC 121
Code: 137946HTC
Afmeting: 80x41x18mm
Gewicht: 40gram

Lamp: T5
Fitting: G5
Vermogen: 1x14-21W

Lamp: TC-D/E
Fitting: G24q-1/2
Vermogen: 1x13-18W

Lamp: TC-T/E
Fitting: GX24q-1/2
Vermogen: 1x13-18W
