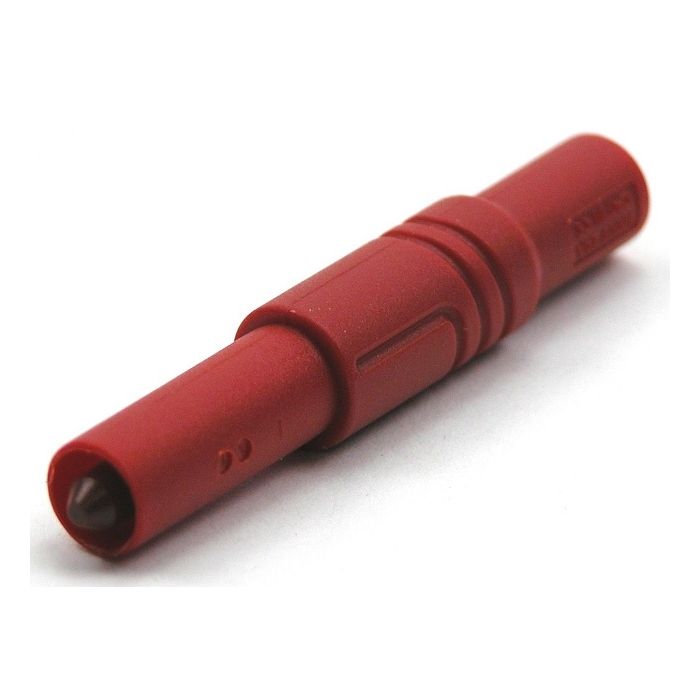

BANAANSTEKKER 4MM MALE ROOD VEILIGHEIDS BUS SCHROEFAANSLUITING
€ 3,85
€ 3,18
Artikelnummer
LASSG/RD
- ArtikelnummerLASSG/RD
- MerkHIRSCHMANN
- Aantal 10+ € 3,46 € 2,86
BANAANSTEKKER 4MM MALE ROOD VEILIGHEIDS BUS SCHROEFAANSLUITING
technical data
connection screw terminal
rated voltage AC/DC 1000 V
measurement cat. acc. to IEC 61010 CAT III
rated current (consider derating curve) 24 A
material plug brass, nickel plated
housing material PA
temperature range acc. To IEC61010(1) -15 °C to +70 °C
inflammability class acc. to UL 94
(only valid for basic material of housing) V-2
