SPEAKER BREEDBAND 8 OHM 30/50W 80-20000HZ 85DB 104,4MM

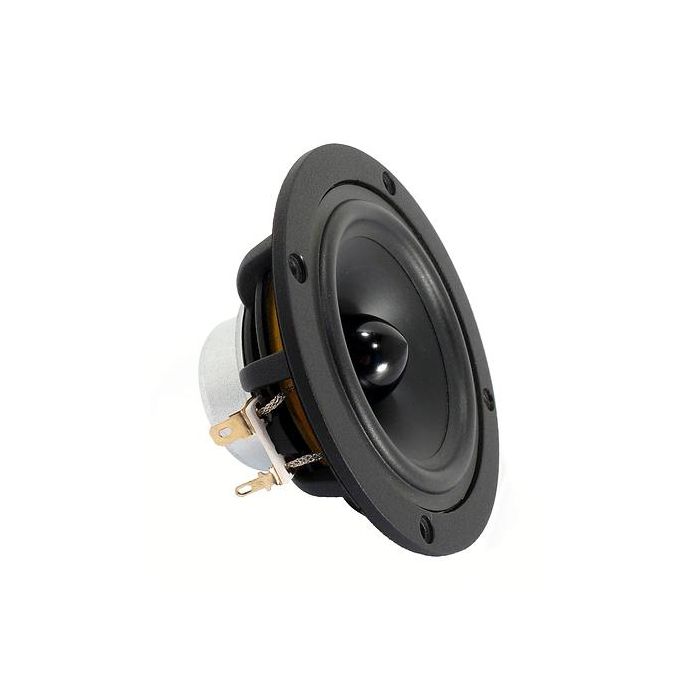

8 cm (3.3\") high-end full-range loudspeaker with excellent balanced response characteristics. Due to perfect accordance of the coated paper cone, the rear ventilated damper and the phase plug, as well as the strong and lightweight neodymium magnet, an extremely well-balanced frequency response with very low harmonic distortion and lowest possible mechanical losses comes into being. The B 80 8 OHM is ideal for small high-end shelf speakers or as a mid-high-range unit in high-end multi-way speakers.

Cm 0,87 mm/N
Rated power 30 W
Maximum power 50 W
Nominal impedance Z 8 Ohm

Frequency response 80–20000 Hz
Mean sound pressure level 85 dB (1 W/1 m)
Opening angle (-6 dB) 119°/4000 Hz
Maximum linear displacement 2,2 mm
Resonance frequency fs 110 Hz
Magnetic induction 1,17 T
Magnetic flux 290 µWb
Height of front pole-plate 3 mm
Voice coil diameter 25 mm
Height of winding 7,5 mm
Cutout diameter 89 mm
Net weight 0,32 kg
D.C. resistance Rdc 6,6 Ohm
Mechanical Q factor Qms 6,53
Electrical Q factor Qes 0,69
Total Q factor Qts 0,63
Equivalent volume Vas 1,8 l
Effective piston area Sd 38,5 cm²
Dynamically moved mass Mms 2,8 g
Force factor Bxl 4,15 Tm
Connections 5,1 x 0,5 mm (+)
2,8 x 0,5 mm (−)
