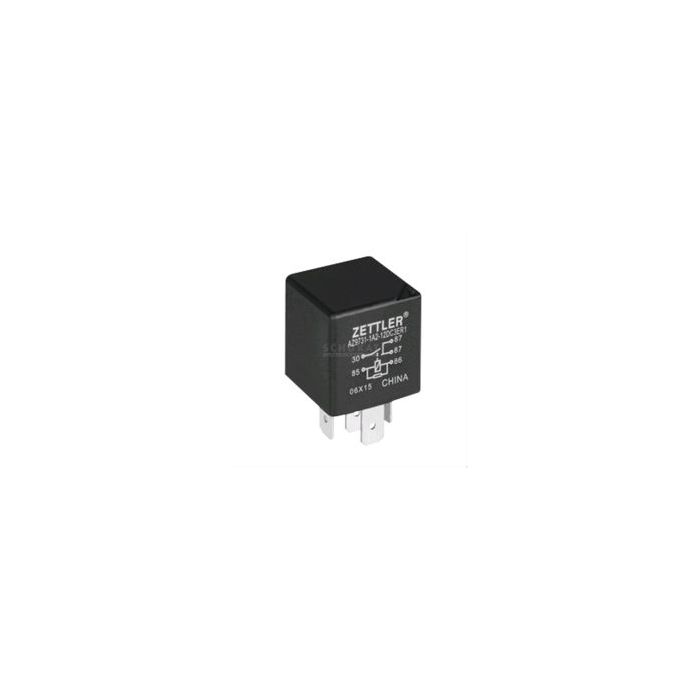

AUTORELAIS 12VDC 1 X OM 40A FASTON 6,3MM AANSLUITINGEN
€ 4,50
€ 3,72
Artikelnummer
R012D1WJA
- ArtikelnummerR012D1WJA
- MerkZETTLER
- Aantal 5+ € 4,04 € 3,34
Features |
• 40A contact rating • High operating temperature 125°C • Quick connect terminals • Plastic dust cover with plastic mounting breacket • ISO/TS 16949, ISO14001 |
Technical Specifications |
Contact: | |
AZ9731-1A-_: | SPST-NO |
AZ9731-1C-_: | SPDT |
Contact Material: | AgSnO2 |
Rated Current: | 40A |
Max. Switching Voltage: | 28V DC |
Max. Switching Power: | 560W |
Operate/Release Time: | 7/5ms |
Testing Voltage (FCC) | |
Coil/Contact: | 750VRMS |
Open Contacs: | 500VRMS |
Lifetime | |
Mechanical, Min.: | 1x107 Operations |
Electrical, Min. (40A / 14V DC) | 1x105 Operations |
Operating Temperature: | -40...+125°C |
Weight Approx.: | 36g |
Coil Data |
Part Nr | UN | Umin. | Umax. | PN | RN |
[V DC] | [V DC] | [V DC] | [mW] | [Ohm] | |
AZ9731-1C-12DC2 | 12 | 7,8 | 15,6 | 1600 | 90 |
UN = Rated Voltage, UMin. = Minimum Operating Voltage, UMax. = Maximum Operating Voltage, PN = Rated Power, RN = Coil Resistance; Rated Value ±10%; All Specifications Measured at 20° |
