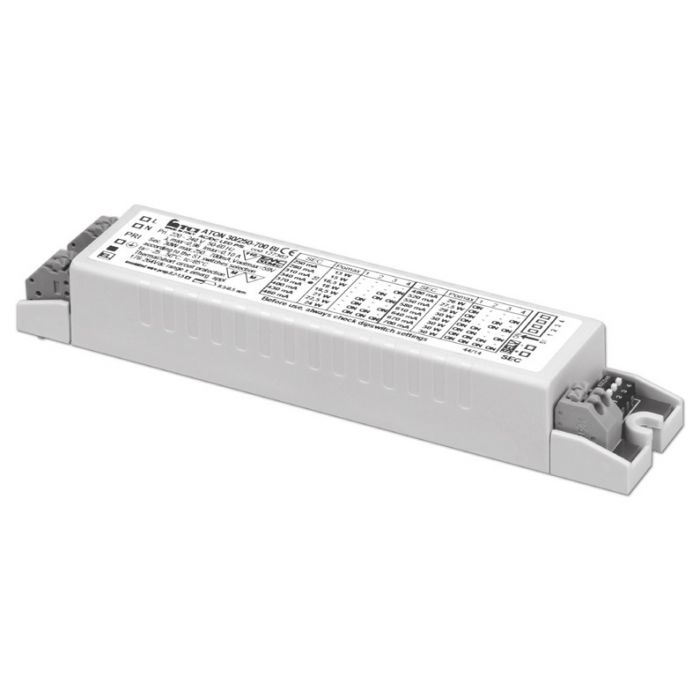

ATON 30/250-700 LED DRIVER 2-54VDC 250-700MA 30W 144X30X21MM

Features

• Multipower driver supplied with dip-switch for the selection of
the output current.
• IP20 independent driver, for indoor use (ATON).
• Class I protection against electric shock for direct or indirect
contact (ATON).
• Driver for built-in use (ATON BI).
• It can be used for lighting equipment in protection class I
(ATON BI).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the opposite side (wire
cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm (ATON).
• Driver can be secured with slot for screws.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
