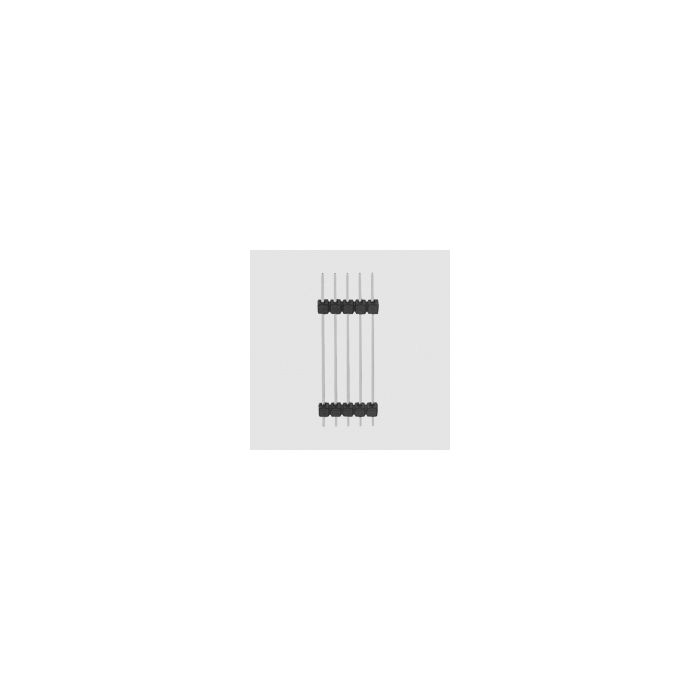

STAPELPENNEN MALE 20P 38MM HOOG VERTINT RASTER 2.54MM

Features
• Tin-plated version
• Arbitrary mounting
Technical Specifications

Insulation Shell: Thermoplastic, UL94V-0
Contact Material (DIN17660): CuZn (brass)
Contact Surface: Sn, lead-free
Insulation Resistance, Max.: 40mW
Rated Current: 3A
Rated Voltage: 250VRMS/250V AC
Insulation Resistance, Min.: 500MW
Temperature Range: -40...+105°C
Short Term (10s): +260°C
Solderability: IEC 68-2-20 Tb
