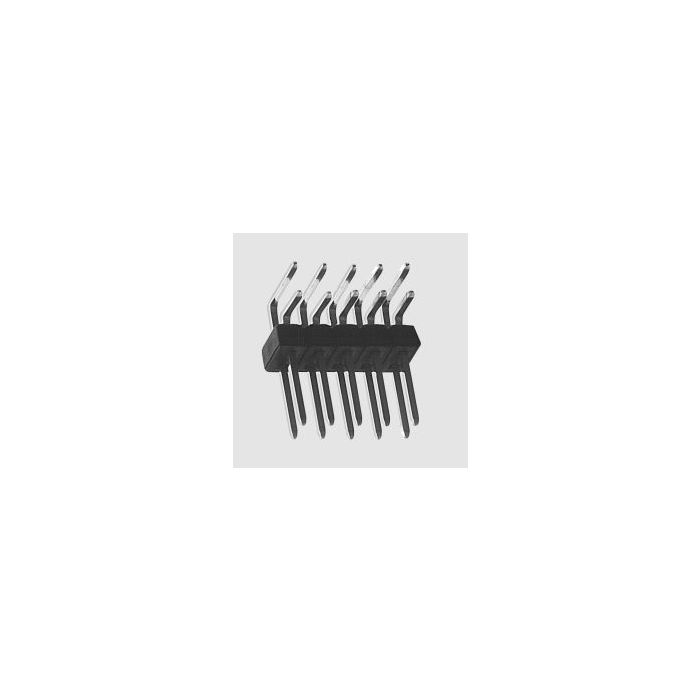

KONTAKTSTRIP 100P HAAKS VERTINT 10 STUKS RASTER 2.54MM
€ 54,99
€ 45,45
Artikelnummer
ASL100ZW
- ArtikelnummerASL100ZW
- MerkBrand
- Aantal 2+ € 46,74 € 38,63
Features
Tin-plated design
Arbitrary mounting
Technical Specifications
Insulating Shell: Thermoplastic, UL94V-0
Contact Material (DIN17660): Copper alloy
Contact Surface: Tin-plated
Insulation Resistance, Max.: 40mW
Rated Current: 3A
Rated Voltage: 250V AC
Insulation Resistance, Min.: 500MW
Temperature Range: -40...+105°C
Short Term (10s): +260°C
Solderability: IEC 68-2-20 Tb
Dimensions
Pin Length, Complete1): 14,7mm
Pin Length, Plug-in Area (B): 7,0mm
Pin Length, Soldered Area (C): 3,3mm
Pin Cross Section 0,635x0,635mm
1) Full Length of Short Contacts
