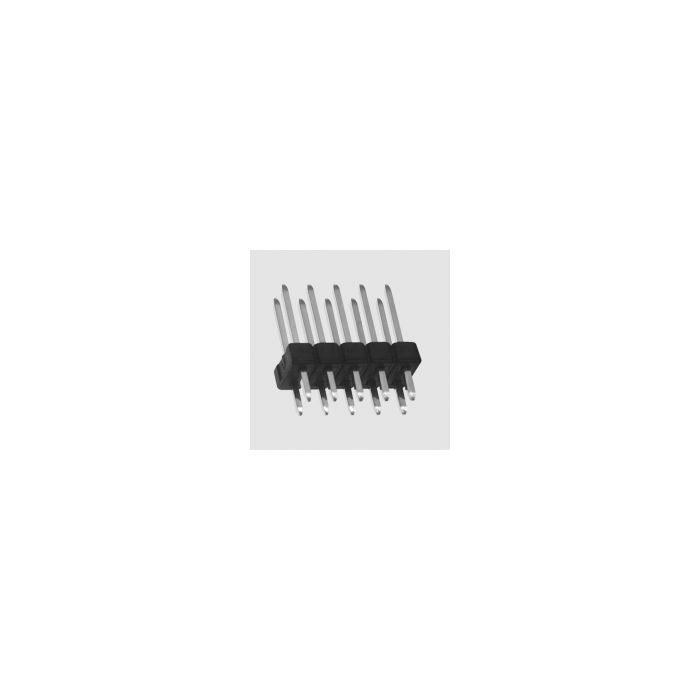

KONTAKTSTRIP 100P RECHT VERTINT 10 STUKS RASTER 2.54MM
€ 14,96
€ 12,36
Artikelnummer
ASL100Z
- ArtikelnummerASL100Z
- MerkBrand
- Aantal 2+ € 12,71 € 10,50
Features
Tin-plated design
Arbitrary mounting
Technical Specifications
Insulating Shell: Thermoplastic, UL94V-0
Contact Material (DIN17660): Copper alloy
Contact Surface: Tin-plated
Insulation Resistance, Max.: 40mW
Rated Current: 3A
Rated Voltage: 250V AC
Insulation Resistance, Min.: 500MW
Temperature Range: -40...+105°C
Short Term (10s): +260°C
Solderability: IEC 68-2-20 Tb
Dimensions
Pin Length, Complete1): 14,7mm
Pin Length, Plug-in Area (B): 7,0mm
Pin Length, Soldered Area (C): 3,3mm
Pin Cross Section 0,635x0,635mm
1) Full Length of Short Contacts
Tin-plated design
Arbitrary mounting
Technical Specifications
Insulating Shell: Thermoplastic, UL94V-0
Contact Material (DIN17660): Copper alloy
Contact Surface: Tin-plated
Insulation Resistance, Max.: 40mW
Rated Current: 3A
Rated Voltage: 250V AC
Insulation Resistance, Min.: 500MW
Temperature Range: -40...+105°C
Short Term (10s): +260°C
Solderability: IEC 68-2-20 Tb
Dimensions
Pin Length, Complete1): 14,7mm
Pin Length, Plug-in Area (B): 7,0mm
Pin Length, Soldered Area (C): 3,3mm
Pin Cross Section 0,635x0,635mm
1) Full Length of Short Contacts
