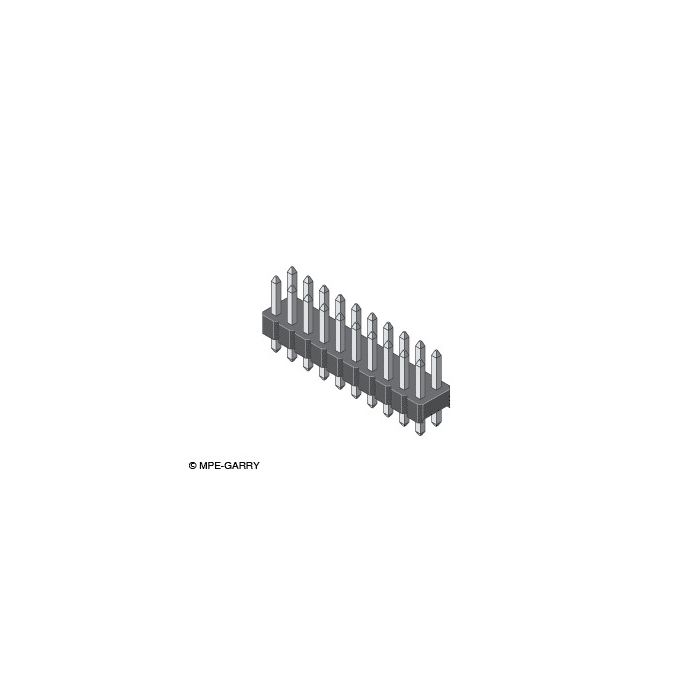

KONTAKTSTRIP DUBBEL RIJ 2X36P RECHT VERTINT RASTER 2.54MM

Gender Male
Pitch (mm) 2,54
Mating pin size ☐ 0,64
No of rows 2
Row distance (mm) 2,54
No of pins 72
Polarising Non polarised
Locking No lock
Board termination Through hole
Orientation to PCB Straight
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current 3,0 A
Rated voltage 250 VRMS / VDC
Breakdown voltage 1000 VAC for one minute
Operating temperature -40°C to +105°C
Max. soldering temperature 260°C for 10 seconds
