ANTENNE MOBIEL 27MHZ MAGNEETVOET

€ 47,95 € 39,63

Artikelnummer

AS100MAG

Sirio - AS 100 MAG

Toon meer Toon minder

ArtikelnummerAS100MAG
MerkSIRIO

Voor dit product geldt een toeslag voor verzending van 12,95 Euro (excl BTW)

Aantal 5+ € 45,54 € 37,64

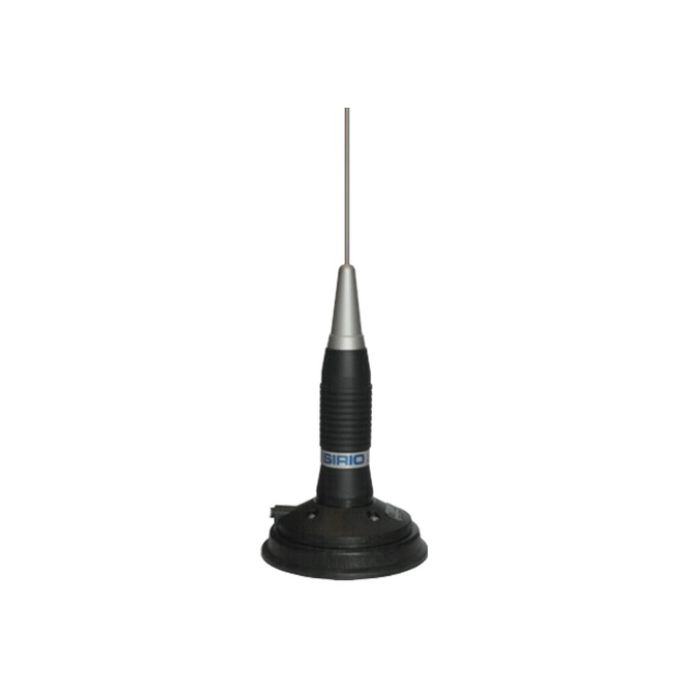

The AS 100 MAG antenna is a mobile antenna with PM 100 magnet. The antenna is supplied with magnetic mount and 3.6 meter cable for a temporary installation or for use with holiday kits.

Frequency range: 27 - 28.5 MHz

Electrical data

Electrical type: Base loaded
VSWR: ≤ 1.2
Bandwidth: 580 kHz (55 channels) ≤ 2.0
Maximum continuous power: 100 Watts (CW)
Power peak: 300 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 3.6 m / RG 58

Mechanical data

Materials: Copper, brass, stainless steel 17/7 PH, nylon
Height: 1020 mm
Weight: 240 gram
Mounting type: 92 mm magnet

Inside the box

Antenna: Yes
Radio connector: UHF (PL) male
Mounting parts: Yes
Antenna cable: Yes
Installation manual: English, Italian
