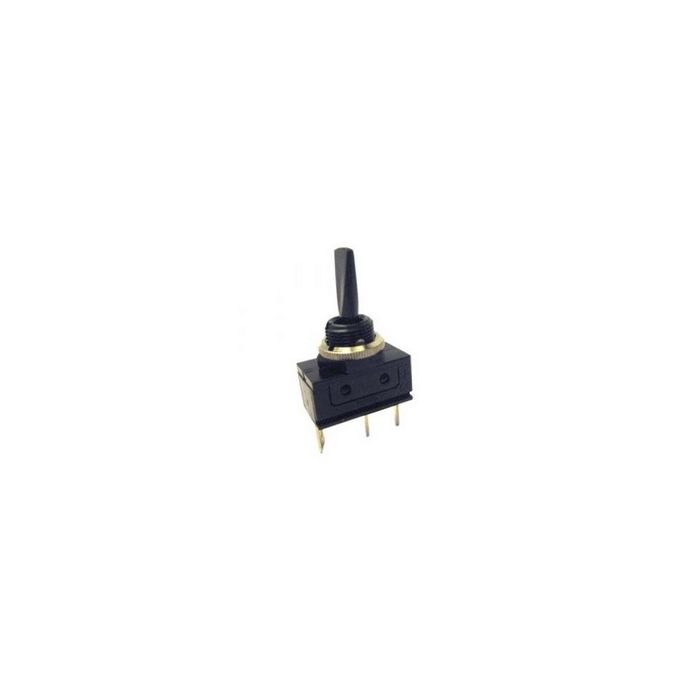

TUIMEL 1 X OM 16(4)A 3 STANDEN
€ 6,95
€ 5,74
Artikelnummer
AR3
- ArtikelnummerAR3
- MerkARCOLECTRIC
- Aantal 10+ € 5,89 € 4,87
Features
| • For central mounting • Black plastic rocker arm • Approved up to 250V/16A |
 |
| Selection Table |
| Part Nr. | Nr. of Poles | Function |
| AR1 | 1-Pole | 1 x On/Off |
| AR2 | 1-Pole | 1 x On/On |
| AR3 | 1-Pole | On-Off-On |
| AR4 | 2-Pole | 2 x On/Off |
| AR6 | 2-Pole | 2 x On/On |
|
||
| Technical Specifications |
|
|
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 16A |
| Switching Current at Inductive Load, Max.: | 4A |
| Inrush Current (EN61058-1): | 36A |
| Ambient Temperature, Max.: | 85°C |
| Insulation Resistance: | >20MOhm |
| Contact Resistance | |
| (New State, 12V DC/1A): | <100mOhm |
| Contact Opening Width | |
| C1700_, C1750_: | 3mm |
| C1710_, C1720_, C1760_: | <3mm |
| Soldering Conditions (Hand Solder): | 350°C/6s |
| Material | |
| Shell and Lever: | Nylon 6.6 |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
|
|
| Panel Cut-out |
| Wall Strength | Cut-out | |
| [mm] | [mm] | |
| 3,5 (with 2 Nuts) | Ø 12,7 | |
| 6,5 (with 1 Nut) | Ø 12,7 |
