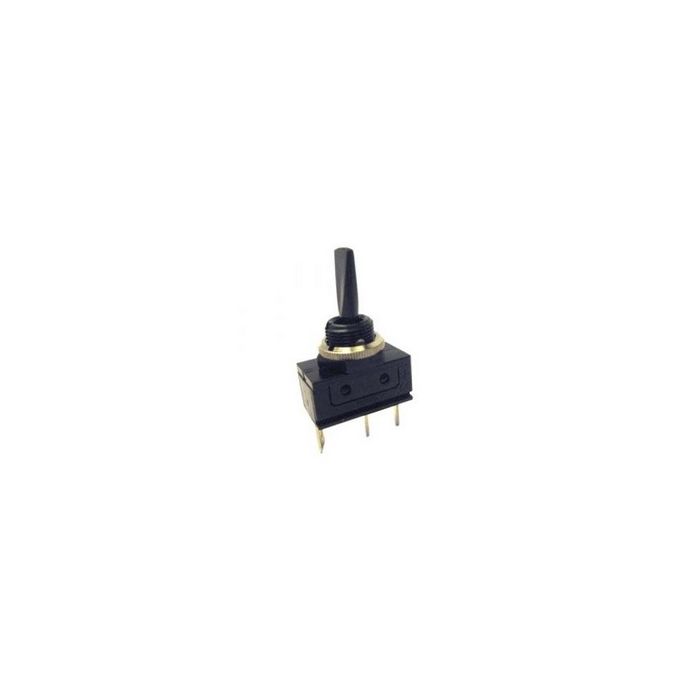

TUIMEL 1 X OM 16(4)A
Tuimelschakelaar
Toon meer
Toon minder
- ArtikelnummerAR2
- MerkARCOLECTRIC
Features
• For central mounting
• Black plastic rocker arm
• Approved up to 250V/16A |
 |
| |
|
|
| Part Nr. |
Nr. of Poles |
Function |
| AR1 |
1-Pole |
1 x On/Off |
| AR2 |
1-Pole |
1 x On/On |
| AR3 |
1-Pole |
On-Off-On |
| AR4 |
2-Pole |
2 x On/Off |
| AR6 |
2-Pole |
2 x On/On |
|
|
| |
|
| Operating Voltage, Max.: |
250V AC |
| Switching Current, Max.: |
16A |
| Switching Current at Inductive Load, Max.: |
4A |
| Inrush Current (EN61058-1): |
36A |
| Ambient Temperature, Max.: |
85°C |
| Insulation Resistance: |
>20MOhm |
| Contact Resistance |
| (New State, 12V DC/1A): |
<100mOhm |
| Contact Opening Width |
| C1700_, C1750_: |
3mm |
| C1710_, C1720_, C1760_: |
<3mm |
| Soldering Conditions (Hand Solder): |
350°C/6s |
| Material |
| Shell and Lever: |
Nylon 6.6 |
| Current-carrying Part: |
Cu Alloy |
| Contacts: |
Silver-plated |
| Flammability Class: |
UL94V2 |
|
| |
|
|
| Wall Strength |
Cut-out |
|
| [mm] |
[mm] |
|
| 3,5 (with 2 Nuts) |
Ø 12,7 |
|
| 6,5 (with 1 Nut) |
Ø 12,7 |
