MOBIELE CB ZENDER SET MET KABEL EN MAGNEETVOET ANTENNE

€ 76,96 € 63,60

Artikelnummer

AP-7/SP

Jopix - AP-7 starter pack

Toon meer Toon minder

ArtikelnummerAP-7/SP
MerkJOPIX

Aantal 3+ € 73,11 € 60,42

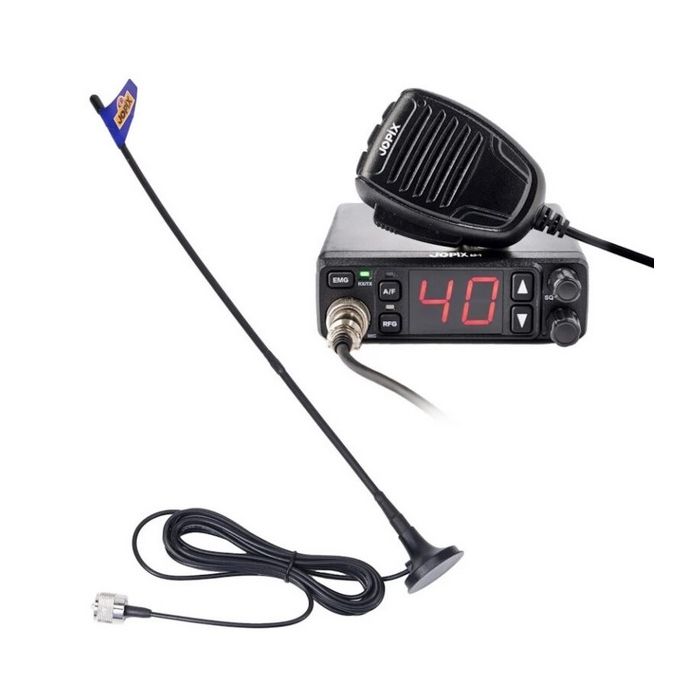

The Jopix AP-7 is a compact size CB transceiver with a 40 channel backlit display, Automatic Squelch (ASQ) and 12/24 Volt power supply. The set is included with a mmini mobile Jetfon MAG-7 magnetic antenna base. Jefton MAG-7 is equipped with a UHF (PL) male connector and 50 Ohm, simple and effective.

Frequency range: 26.965 - 27.405 MHz

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 1-4 Watt
Channels: 40 AM / FM
Display type: Backlight
Display colors: Red
Squelch: ASQ (Automatiq Squelch Systeem)
Scan function: Yes
External speaker socket: Yes
RF gain: Yes
Car socket connector: Yes

Electrical data (radio)

Voltage: 13,8 Volt / 24 Volt
Operating temperature: -20° to +60° C
Frequency control: PLL synthesizer

Mechanical data (radio)

Length: 150 mm
Height: 37 mm
Width: 115 mm
Weight: 400 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: 6 pin connector

Electrical data (antenna)

Electrical type: Central loaded
VSWR: ≤ 2.0
Gain: 2 dBi
Power continues: 10 Watts (CW)
Power peak: 20 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 3 meter / RG 174

Mechanical data (antenna)

Materials: Copper
Height: 427mm
Weight: 100 gram
Connector: UHF (PL) male
Mounting type: 42 mm magnet

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English
Antenna: 1 pcs
