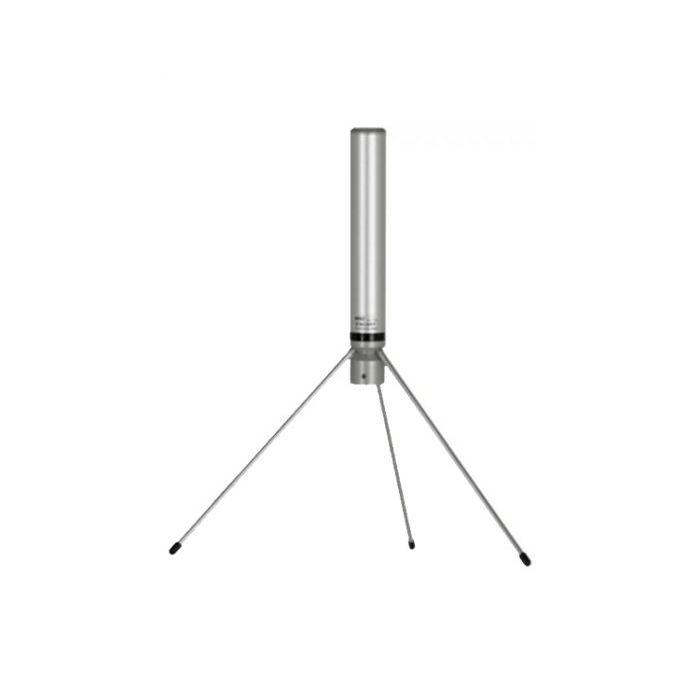

ANTENNE BASIS 88-108MHZ 1/4 2.15DBI N-CONNECTOR
€ 95,95
€ 79,30
Artikelnummer
GP87108LBN
- ArtikelnummerGP87108LBN
- MerkSIRIO
- Aantal 3+ € 86,36 € 71,37
1/4 λ Ground Plane wide-band antenna, 87 - 108 MHz, for base station service. It is made of aluminium and hiqh quality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges. GP 87-108 LB is developed for FM radio, 3 meter band.
Frequency range: 87 - 108 MHz
Electrical data
Electrical type: 1/4 λ folded ground plane
Gain: 0 dBd, 2.15 dBi
VSWR: See the user manual under product downloads
Bandwidth: See the user manual under product downloads
Maximum continuous power: 1000 Watts
Impedance: 50 Ohm
Polarization: Linear vertical
Materials: Anodized aluminium, stainless steel, nylon
Mast Ø: 36 - 40 mm
Max wind resistance: 160 km/h
Height: 1190 mm
Weight: 1500 gram
Mounting type: On mast
Antenna connector: N-female
