ANTENNE BASIS 27MHZ 3/4 4.15DBI

€ 179,95 € 148,72

Artikelnummer

VECTOR4000

Toon meer Toon minder

ArtikelnummerVECTOR4000
MerkSIRIO

Voor dit product geldt een toeslag voor verzending van 12,95 Euro (excl BTW)

Aantal 5+ € 170,95 € 141,28

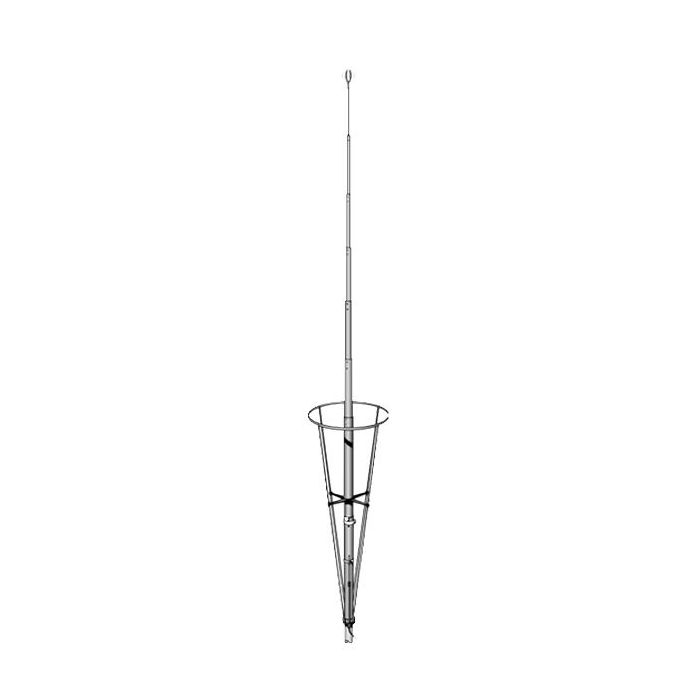

3/4 λ coaxial J-pole base antenna with gamma match for the CB and 10 meter band. Highest gain of all Sirio aluminium CB base antennas. Complete with anti-static top.

Frequency range: 27 - 28.5 MHz tunable

Electrical data

Electrical type: 3/4 λ coaxial J-pole
Gain: 2 dBd, 4.15 dBi
VSWR: ≤ 1.2
Bandwidth: 1400 kHz ≤ 2.0
Maximum continuous power: 1000 Watts (CW)
Power peak: 3000 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Feed system: Gamma match

Mechanical data

Materials: Aluminium, brass, galvanized steel, nylon
Mast Ø: 35 - 42 mm
Max wind resistance: 130 km/h
Height: 8480 mm
Weight: 4700 gram
Mounting type: On mast
Antenna connector: UHF-female

ANTENNE BASIS 27MHZ 3/4 4.15DBI

Electrical data

Mechanical data
